Users represent persons using Ground Traffic Control. It is encouraged to issue individual people using the system their own unique username and password. Users are assigned roles, which give specific permissions tailored to their job function or needs within Ground Traffic Control. Roles provide consistency in assigning specific or custom permissions.

Manage

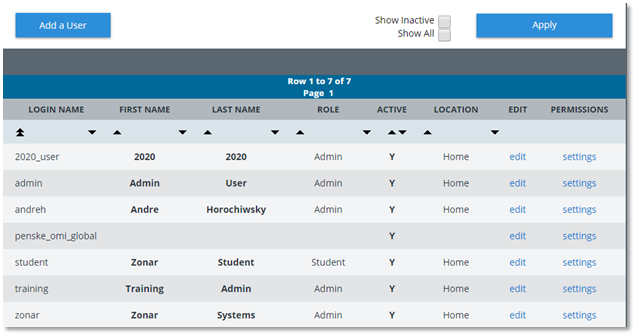

The Manage menu allows the update, addition, and deactivation of users. To access Admin Users, from the main menu click Manage, then go to System Settings and click Users.

While it is not possible to delete a user from Ground Traffic Control it is possible to set their status to Inactive, which disables their ability to log into the system.

Add a User	Add a new user to Ground Traffic Control by clicking the link.
Show Inactive or Show All	Select the Show Inactive check box to display users who are set to inactive. Select the Show All check box to display all users on one continuous page instead of multiple pages. Click Apply after checking either of these check boxes to update the page.
Login Name	The short name that the user will use to log into Ground Traffic Control. The login name is case sensitive and will return an error if entered incorrectly when the user attempts to log into Ground Traffic Control.
First/Last Name	This information will be displayed in reports, EVIR repairs, dispatcher configurations, and other places throughout Ground Traffic Control.
Role	The role that was assigned when the user was created.
Active	Active users have access to log into Ground Traffic Control and will be displayed when reports are run that involve users. Inactive users will be omitted from these areas and will not be able to log into Ground Traffic Control.
Location	The Location Filter assigned to the user. Only resources, such as assets, assigned to the specified location will be available to the user.
Edit	By clicking on the link, edit the information associated with the user (i.e. username, password, email, etc.).
Permissions	Edit the user’s permissions within Ground Traffic Control by clicking on the link.

Add a User

Click Add a User to open the form that lets you create a new Ground Traffic Control user. You can add individual users one at a time, or add more than one user simultaneously by importing a CSV file.

New User Details

Enter the following in the Login Information section:

First Name	(Required) The user’s first name as it should appear on EVIRs and other locations of Ground Traffic Control. The First Name can be up to 32 characters in length.
Last Name	(Required) The user’s last name as it should appear on EVIRs and other locations of Ground Traffic Control. The Last Name can be up to 32 characters in length.
Email	(Required) An email address the user has access to. This email address would be used for retrieving/resetting the user’s password and as a recipient for ZAlerts.
Password	(Required) Passwords must be at least six characters in length.
Confirm Password	(Required) Re-enter the password to ensure accuracy.

Enter the following in the API Sign-on section:

Login Name

(Required)(Must be unique in the account) The name that the user will use to log into Ground Traffic Control. It is recommended that an all lower-case name be used; this field is case sensitive at the time of log in. The Login Name can be up to 32 characters in length.

Enter the following in the Ground Traffic Control Settings section:

Role	Select a role that best fits the new user. This will define the permissions that are granted for the user upon initial creation.
Active	If the user needs to log into Ground Traffic Control, their active status must be set to “Y” (yes). A user that is set to “N” (no) will not appear in reports, dashboards, or be able to log into Ground Traffic Control.
Location	(Required) Select the location filter the user should be associated with.
User Location Filter	Select the location the user will be allowed to view. This will filter assets, drivers, and users that are set to that specific location. If a user needs to view all locations set the filter to “All Locations.”
Attribute Filter	Select the attribute filter the user will be allowed to view. This will filter the assets, which are part of that specific attribute filter. No others will be displayed in the user’s report queries.
Display Count	Select the number of results to be displayed by default in Ground Traffic Control reports.
Report Time Zone	Select the time zone in which the user’s reports will be displayed.

Use a CSV file

Create or update multiple users via CSV file.

CSV File	When importing new users or updating existing users, use Choose File to select the CSV file.
Update Users	When uploading a CSV file, users that already exist within Ground Traffic Control can be updated by checking this box prior to importing their updates contained in a CSV file.
Exclude Header Row	If the CSV file being uploaded has a header row, checking this check box will ignore that row, which would cause an error otherwise.
Load File	After choosing the CSV file and, if necessary, setting Update Users and Exclude Header Row, click the Load File button. If a user cannot be imported, a message will be displayed above the Load Users from CSV file dialogue box.
Download CSV Template	For convenience, clicking on the download CSV template link will download a CSV file with all of the necessary columns in the correct order.

CSV Formatting

CSV columns need to be in the following order:

Login Name (Required)
First Name (Required)
Last Name (Required)
Email
Password (Required)
Active (Required)(Must be Yes or No)
Location Name
User Role (Required)

Attribute Filters, Display Count, and Report Time Zone can be imported through the CSV file.

If the CSV file contains a header row, ensure the Exclude Header Row checkbox is checked prior to loading the file. This will ensure that the users are imported and the header row will not cause an error with the import.

Edit User

Once a user has been created within Ground Traffic Control, they cannot be deleted. The information can be updated and the user can be hidden by setting their Active status to No, which will hide them from reports and prohibit them from logging in.

Click edit to update the existing user details. The Edit User screen has the same fields as Add a New User including the following:

Login Information (First Name, Last Name, and Email)
API Sign-on (Login Name)
Ground Traffic Control Settings (Role, Active, Location, User Location Filter, Attribute Filter, Display Count, and Report Time Zone)

Some important things to remember when editing the fields:

Login Name: It is not possible to update the Login Name when the user currently logged in is the same as the one to be edited. Log out and then log back in using a different user to change.

Role: It is not possible to update the Role when the user currently logged in is the same as the one to be edited. Log out and then log back in using a different user to change.

Active: It is not possible to update the Active status when the user currently logged in is the same as the one to be edited. Log out and then log back in using a different user to change.

Reset Password

Zonar administrators are not allowed to update the single sign-on password for a user. Instead, the administrator clicks a button on the Edit User screen to send a password reset email to the user. However, Zonar administrators can reset a password for Zonar API, FieldView, or users who opt out of the new GTC.

Due to these differences in password administration, the legacy GTC password can get out of sync with the single sign-on password for new GTC.

To reset a user password for GTC, click Request Single Sign-On Password Request on the Edit User screen under Login Information. The user will receive an email with a link to reset their password. A notification will be sent back to the administrator telling them whether or not the password was updated.

To reset a user password for Zonar API, FieldView, or legacy GTC, click Reset Password on the Edit User screen under API Sign-on.

The reset password page will open.

New Password	Enter the temporary password for the user to access Ground Traffic Control. It is recommended that the user then change their password to something they will remember.
Confirm New Password	Re-enter the password that was entered into the New Password field.

User Roles

Understanding the Ground Traffic Control user permissions can help focus users on the areas that they are responsible for. Allowing or disallowing a user to see functions or buttons throughout the system can increase its effectiveness.

When a user is created, they can be given a specific role. For example, Ground Traffic Control’s default roles are; Admin, Dispatcher, Mech, OMI, and User. Each of these roles contains pre-defined permissions based on the user’s responsibility. Additional roles can also be created and applied to users.

To access User Roles, from the main menu click Manage, then go to System Settings and click User Roles.

Roles allow for consistent permissions assignment for multiple users in Ground Traffic Control. Roles are treated as templates for creating new users. It is critical to understand that when a user is created, they are assigned the permissions based on the role at the time of creation.

If a role’s permissions are updated after a user has been created, it will NOT update the existing users assigned to that role.

To update users with the specific role being updated, before clicking Update Profile, ensure that the check box next to Update permissions for all users with the user role: is checked.

This will then update all users with that role when Update Profile is clicked.

New Role Name: To begin creating a new role, enter its name and click Add. The new role will not have any permissions set.
Permissions: Click the permissions link to adjust the permissions for the role.
Duplicate: Click the duplicate link to duplicate the specific role. The new role will have all of the same permissions.
Rename: Rename an existing role. Roles must have a unique name.
Delete: Clicking delete will delete the specific role only if no users are currently assigned. The warning page will give the option to change those users’ roles and allow deletion.

Permissions Defined

Ground Traffic Control defines permission as an “action” that is either added or removed from a specific user. Each permission affects specific functions, menu buttons, data, and user abilities throughout the system. While a user might have permission to view a report, some of the data may be omitted or unavailable if the associated permission is not added to that user’s account.

Permissions set for the default roles:

Permission	Admin	Mech	OMI	User
addrepair	X	X	X
adminaccountconfig	X
adminalerting	X
adminassets	X
adminattributeassign	X
adminattributeefilters
adminattributes	X
adminauxdata	X
adminbadreportlog	X
adminexpiredates	X
adminhos
adminhosdispatch
adminlocations	X
adminmechanic	X
adminmessage	X
adminoperators	X
adminrepairnotes	X	X
adminroutes	X
adminusers	X
adminzpass
alerting	X
assignmechanic	X		X
attributefilters	X
clearbadreportlog	X
editposition	X
editsystememessage	X
extgetrepairusers	X		X
getlinkurl
positionunithealth	X
hosdispatch			X
hoseditlogs
hosnodriver
hospending
hosreports
hosviewlogs
positionactivity
positionaudit
positiongeocode
positionidlestop
positionlocation
positionloi
positionmileage
positionoverlap
positionpath
positionschedule
positionspeed
positionstopgo
positionztrak
showattributes	X
showevents	X
showexpire	X	X		X
showopen	X	X	X	X
showposition	X
showrevokedops	X			X
showstats	X	X	X	X
twentytwenty			X
userprefs	X			X
viewztraknotifications
viewzonarcoach	X
viewbadreportlog	X

Each Ground Traffic Control menu item is controlled by a permission, with the exception of a basic set of functions, which are available to a user that has not been given any permissions. These menu items are:

Dashboard: Critical Defects Today widget.
Reports: Zing, Asset Utilization, Diagnostics, ZPass
Drivers: Configure Thresholds
Assets: Redboard
User Settings: My Password

Menu buttons and their associated permissions:

Menu Location	Sub-Menu/ Section	Item	Permission	Special
Admin				Selecting any item under Admin will activate the Admin menu
	Assets
		Manage	adminassets
		Custom Fields	adminassets
		Radio Address/GPS	adminassets
		Subtypes	adminassets
	Attributes
		Manage	adminattributes
		Asset Attributes	adminattributeassign	Although this box is checked, the “Attributes” menu will not display until adminattributes is selected.
		Attribute Filters	attributefilters	Although this box is checked, the “Attributes” menu will not display until adminattributes is selected.
	Auxiliary Data
		Manage	adminauxdata
		Add Aux. Item	adminauxdata
		Add Aux. Type	adminauxdata
		Auxiliary Types	adminauxdata
	Drivers
		Manage	adminoperators
		Add	adminoperators
		Custom Fields	adminoperators
		Dispatcher Admin	adminhos
	Expiry
		New Manage Expiry	No permission associated
		Manage	adminexpiredates
		Add	adminexpiredates
	Locations
		Manage	adminlocations
		Add	adminlocations
	Logs
		Alert Messages	viewbadreportlog
		Application Events	viewbadreportlog
		Asset Admin	viewbadreportlog
		Failed Actions	viewbadreportlog
		Failed Inspections	viewbadreportlog
		Failed Logins	viewbadreportlog
		Sessions	viewbadreportlog
		ZonarCom Events	viewbadreportlog
	Misc. Admin			Selecting any one of the permissions will activate this menu.
		Event Alerts	userprefs
		Input Labels	adminaccountconfig
		Password Settings	adminaccountconfig
		Safety Message	editsystemmessage
	Repair Notes
		Manage	adminrepairnotes
		Add	adminrepairnotes
	Routes
		Manage	adminroutes
		Add	adminroutes
	Users
		Manage	adminusers
		Add	adminusers
		User Roles	adminusers
	ZAlerts			Selecting either Manage or View will activate this menu.
		Manage	adminalerting
		View	alerting
	Zones
		Manage Zones	editposition positionloi
		Add Zone Category	editposition
		Zone Categories	editposition
Assets
		Auxiliary Items	showopen
		New Expiry Report	showexpire
		Expiry	showexpire
		Red Board	No permission associated
		Statistics	showstats
		View	adminassets	Adding this permission will allow for Editing.
		Manage Expiry Types	adminexpiredates adminassets	adminexpiredates enables the button adminassets provides access
Drivers
		Expiry	showexpire
		Revoked	showrevokedops
		Statistics	showstats
		Times	eventtimes
		View	showopen
		Driver Performance	adminalerting
		Configure Thresholds	adminalerting
Reports
	GPS Track & Trace			Enabled by one or more of the following permissions.
		Activity	positionactivity showposition
		Audit	positionaudit showposition
		GPS Timecard	showstats
		GPS Units	showopen
		GPS Unit Health	positionunithealth
		Idle Time	positionidlestop showposition
		Location	positionlocation showposition
		Mileage	positionmileage showposition
		Mileage By State	positionmileage showposition
		Odometer	showopen
		Overlap Path	positionoverlap showposition	Sometimes called “Overlap.”
		Path	positionpath showposition
		Schedule	positionschedule showposition
		Speed	positionspeed showposition
		Stop Time	positionidlestop showposition
		ZTrak	positionztrak showposition
	EVIR Inspection
		Fleet Statistics	showstats
		GPS Track Missing	showopen
		Incomplete	showopen
		Inspection Ack	ackinsp
		Inspection Cost	showopen showstats
		Inspections Sequencing	showopen
		Latest Inspection	showopen
		EVIR Mileage	showstats
		Missing	showstats
		Missing Insp. PTO	showposition	Default, but calling a permission
		Unverified	showopen
		View Inspections	showopen
	Fuel, Diagnostics & Usage
		Asset Utilizations	No permission associated
		Diagnostics	No permission associated
		Fuel and Oil	showopen
		GPS Engine Hours	showstats
		Jbus Fuel Path	showposition
		Trip Report	showposition
	ZLogs
		Live Status	hosviewlogs hoseditlogs adminhos
		Driver Logs	hosviewlogs hoseditlogs adminhos
		Driver Availability	hosreports adminhos
		Unresolved Logs	hospending hosnodriver adminhos
	ZPass/Rider Tracking
		Passenger Count	showopen
		ZPass	No permission associated
	Custom Reports
		Arbitrary/Aux. Data	showopen
		Asset Times	eventtimes
		Auxiliary Report	showopen
		Auxiliary Expiry	showexpire
		Input Module	showopen
		J3 Files Download	showposition showopen
		Plow/Sweep	showposition	Enabled by default, but requires a permission
		PTO Engine Hours	showopen
		SDOT Plow/Sweep	showposition	Enabled by default, but requires a permission
User Settings
		Attribute Filter	userprefs
		Display Count	userprefs
		Event Alerts	userprefs
		Location Filter	userprefs
		My Email	userprefs
		My Password	No permission associated
		My Permissions	userprefs
		My Timezone	userprefs
		Routes or Assets	userprefs
Zoom
	Compliance Insights		hosreports

There are some instances when a user has the ability to run a report such as “GPS Timecard;” however, if the permission “showopen” is not enabled for that user’s account, they will not see the “Asset” for each entry and the operator will not display as a link, linking to the inspections for the user associated with the entry.

There are also a number of permissions that do not affect the Ground Traffic Control menu button. However, when added, they give the user the ability to perform specific tasks.

The permissions and their function(s) are as follows:

Permission	Description
adminbadreportlog	Allows the user to delete failed inspections by adding a “delete” check box to the right side of the list.
showattributes	Displays the attribute drop-down used for filtering when running a report.
adminmech	Administer Mechanics through the API
adminattributefilters	Allows the creation and editing of filters; allows an administrator to assign owners to a filter and disallow other users from seeing them.
clearbadreportlog	Shows the “Clear entries older than” button which allows a user to delete “Failed Actions,” Failed Log-ins,” and Sessions.
positiongeocode	Gives the user the ability to geocode addresses.
adminmessage	Allows your users to send messages using Zing – GPS Messaging
showfocus	Route Replay, PvA, Ontime. Related to a specific account.
positiontopgo	GPS Stop and Go Report. Related to a specific account
viewztraknotifications	Displays the number of Ztrak units that have a remaining battery life of 5% or less in the “Notifications” section of the dashboard and other pages throughout Ground Traffic Control.
viewzonarcoach	View Zonar Coach report.
addrepair	Allows a user to add a Repair Record if the user also has the “showopen” permission. This permission also adds the user to the “Technician” drop-down, allowing them to be assigned to a repair. Also allows the user to enter their own repairs.
assignmechanic	Allows the user to repair a defect if they also have the “showopen” permission. This permission also allows a user to certify that any user with the “addrepair” permission has repaired a defect or deficiency or that no repair was required.
extgetrepairusers	Get repair users. Used by the API to get lists of users with the ability to repair defects.
getlinkurl	Allows the creation of direct links through API.
showevents	Associated with ZPass, allowing the user to populate the data in a “User Sessions Log.”
twentytwenty	Actions used by the Connect device. Deprecated.
hosdispatch	Allows a user to be designated a dispatcher, have drivers assigned to them, and allows messaging to those drivers.
hoseditlogs	This permission also gives the user the same permissions as “hosviewlogs” and allows the user to add or edit a driver’s logs. It also allows the user to approve pending edits and assign drivers to unassigned logs.
hosreports	This permission activates Zoom > Compliance Insights, enabling ELD HOS reports.
adminhos	While access is granted to all of the Zonar Logs pages, they are unable to edit logs.

Updating User Permissions

A Ground Traffic Control administrator user can update the permissions associated with other users. There are two ways of updating permissions:

Update all users with the same role.
Update a single user’s individual permissions.

To update a single user’s permissions, click the settings link next to the user on the Admin Users screen.

If a user has a specific permission, there will be a check box for it in the REMOVE column. If a user does not have a specific permission, there will be a check box in the ADD column. To add a permission to the user, select the ADD check box for each permission to be added and then click Update User.

To remove a permission from the user, select the REMOVE check box for each permission to be removed and then click Update User.

To add and remove multiple permissions from the user; select the applicable check boxes (ADD or REMOVE) and then click Update User.
