This article provides a brief description of some cables that are available from the Zonar store for your transition from AOBRD to ELD.
To access the Zonar Online Store go to https://store.zonarsystems.com/.
The online store is only capable of accepting credit card payments and is unable to apply tax exemptions. If you require any other payment method other than credit card or require a tax exemption, contact your sales representative.
From the main menu, click Cables to view all available cables Zonar offers.
The primary cables to be used for ELD-compliant installations are as follows:

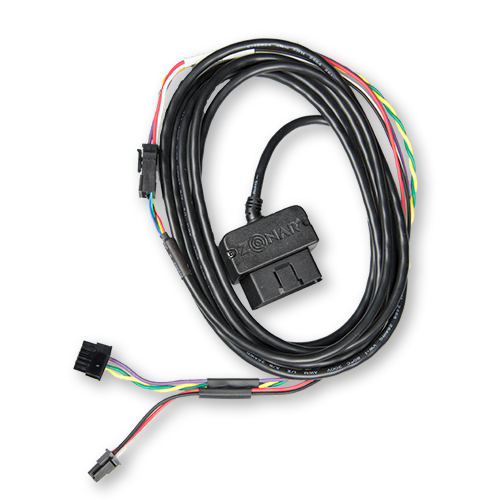

GPS Light Duty Cable Kit, part #81153
This cable kit includes the 10-PIN Diagnostic Connector that plugs into the Light Duty Adapter Harness, and the OBDII Connector to the vehicle OBDII Port.
Used for: Light duty trucks, SUVs, and cars

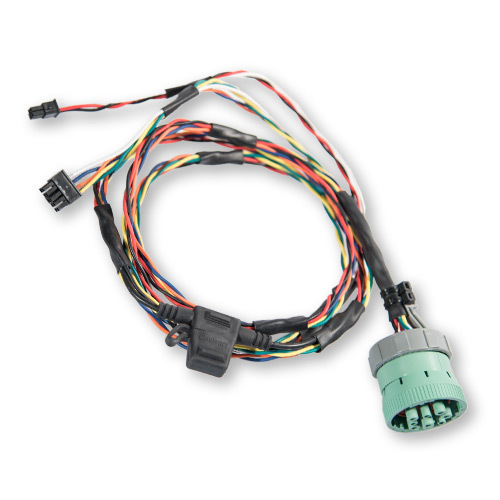

9-Pin GPS Diagnostic Cable, part #81523
This cable kit includes the 4-PIN Power Connector that plugs into the GPS Unit, the 10-PIN Diagnostic Connector that plugs into the GPS Unit, a 3 AMP inline fuse, and the 9-PIN Diagnostic Connector that plugs into the Vehicle 9-PIN Diagnostic Connector.
Used for: Heavy duty trucks and buses with 9-pin connectors (2006 and newer)

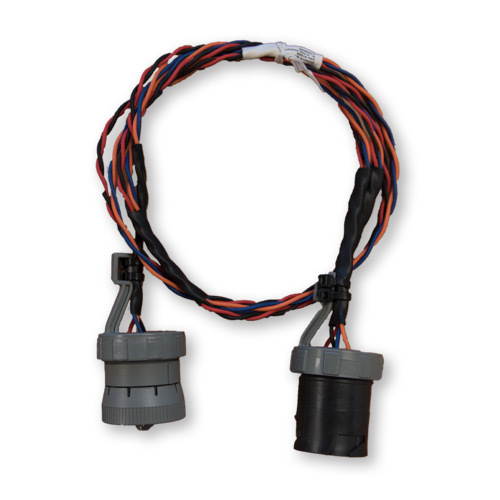

6-Pin to 9-Pin Adapter Cable, part #81632
This cable is an adapter to convert a 9-pin connector to a 6-pin connector for JBUS cables.
Used with: 9-Pin GPS Diagnostic Cable, part #81523
Used for: Heavy duty trucks and buses with 6-pin connectors (2005 and older)

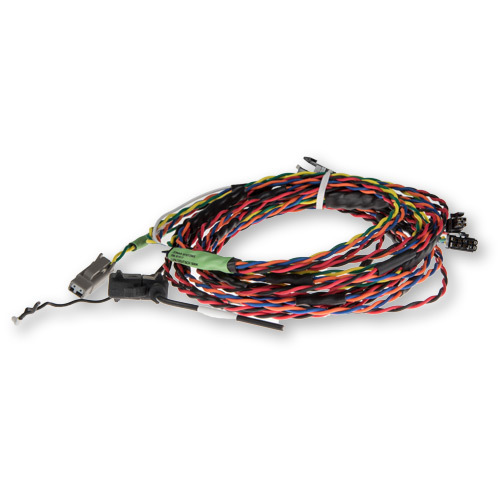

Deutsch 2-Pin Cable, part #81517
This cable kit includes the 4-PIN Power Connector that plugs into the GPS Unit, the 10-PIN Diagnostic Connector that plugs into the GPS Unit, a 3 AMP inline fuse, the 2-PIN J1587 Connector, and the 2-PIN Deutsch Connector that plugs into the necessary adapter to connect to the vehicle's J1939 JBUS.
Used with: Vehicle-specific adapters. For the specific adapter needed, review our installation guides for the vehicle(s) you are installing into.
Used for: Heavy duty trucks and buses
