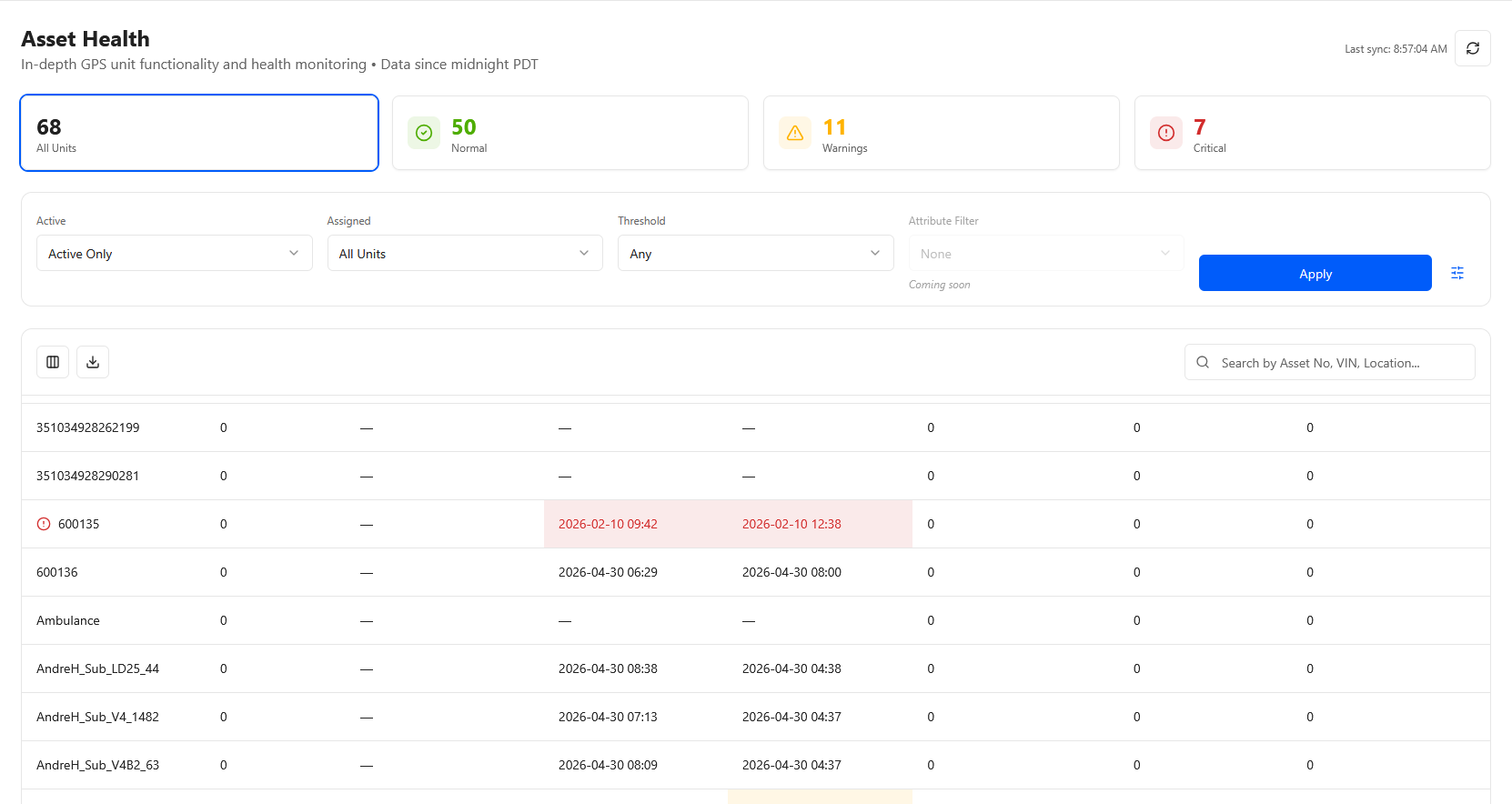

The Asset Health page delivers in-depth information on fleet GPS Units and their functionality. The report breaks down critical and accessory information into a table that can be quickly sorted and easily customized.
Asset Health refreshes its data whenever the report is opened. Users can manually call for updated data by clicking the Sync button at the top right corner of the page.
Health Status Summary
By default Asset Health will display all units in a fleet but it also offers quick sorting options based on Threshold Filters. Clicking any of the color-coded cards at the top of the report will display units that fit these metrics:
Normal : Units operating within all defined thresholds with no issues detected. By default, this will list any GPS units that have reported within the last 24 hours.
Warnings : Units with metrics approaching critical thresholds. By default, GPS units that have reported within 24-48 hours will be listed.
Critical : Units requiring immediate attention. By default, GPS units that have not reported within 48 hours will be listed.
Threshold Filters can be set by clicking the Settings button. This will open the Threshold Filters menu. The value difference between the set minimum and maximum thresholds will define the Warning state of the Asset Health report. At any time the threshold filters can be reverted to preset values by clicking Reset to Defaults.
GPS Unit Health Data Table
The data table taking up the majority of the page is where Asset Health displays its GPS data. Results can be filtered down with the Health Status Summary cards, the filter bar or by manually searching for a vehicle or unit.
Asset Health's data table generates with these preset column categories:
- Asset No: The customer defined asset number or name.
- Cold Start: The total cold start count since midnight (PST).
- Last Inspection Date: The date/time when the last inspection was uploaded.
- Last Phone Home: The last GPS phone home date/time (normally every four hours).
- Last Position Date: The last time the GPS had solid geo-positional fix with power on.
- Power Off with Travel: Counts of a vehicle moving 0.5 miles or greater between power off/on events.
- SPOC > 10MPH: Moments the GPS recorded a switched power off event while the vehicle was moving at 10 MPH or greater since midnight (PST).
- Switch Power-Off Count: Total Switched Power off events since midnight (PST).
- GPS Serial Number: The serial number of the GPS unit.
- GPS Firmware: The firmware version of the GPS unit.
- Battery: The asset battery voltage at last Phone Home (DC volts).
- Location: The asset's location assigned.
- Current Zone: The last reported geo-zone location.
Columns can be added or removed from the data table in the Show/Hide Columns menu. This menu can be opened by clicking the Columns button.
Clicking the Download button will generate a CSV copy of the report.
