Bus Decommission Guide

  • Last edited on

Uninstalling the Telematics Control Unit (TCU):

Most bus installs use the vehicle diagnostic port for power and engine data sourcing.

  1. If you do not know where the TCU is installed follow the diagnostic cable from the vehicle diagnostic port.

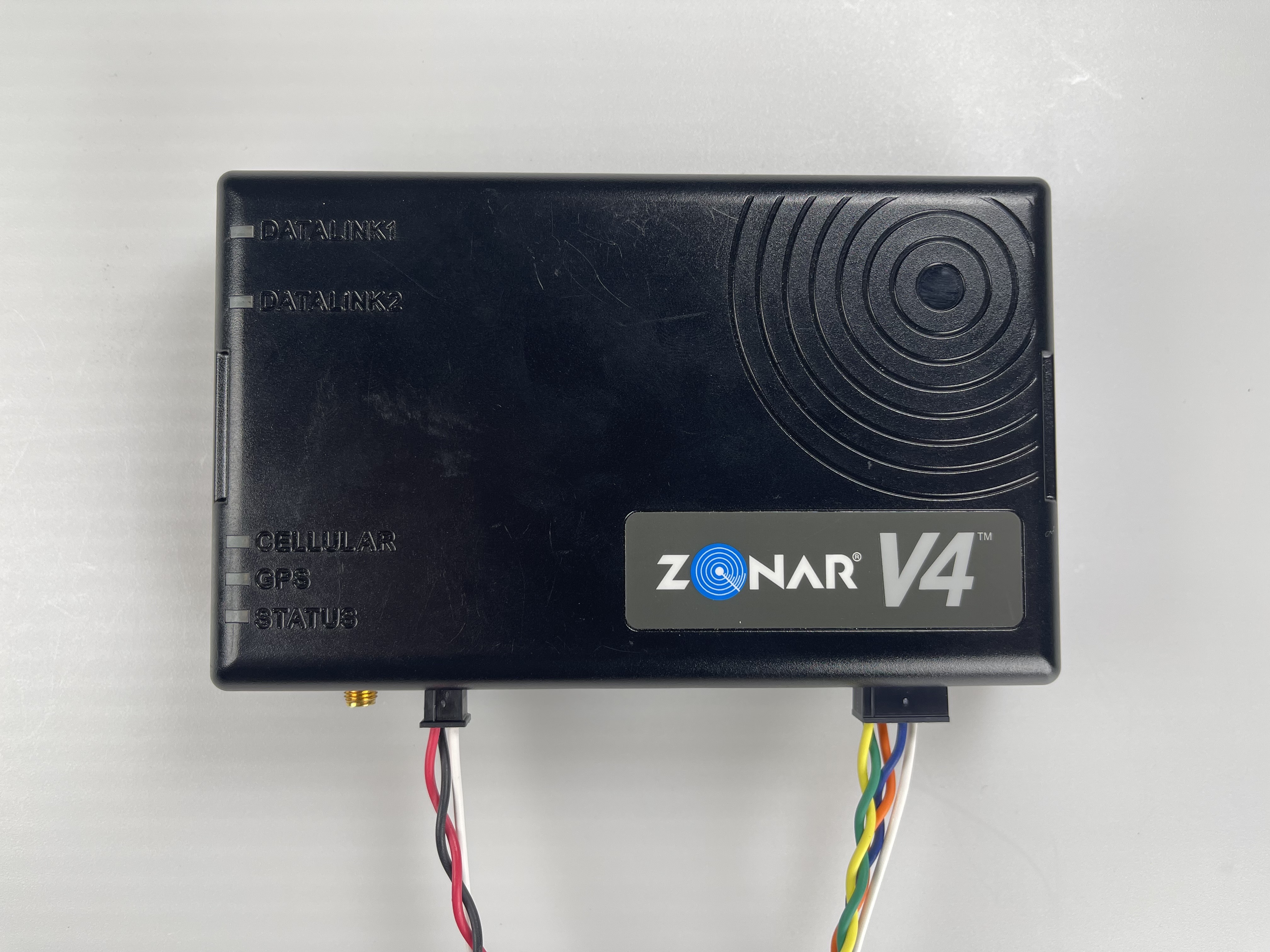

  2. The diagnostic cable splits into two male plugs and connects with the TCU: One 4-pin connector and one 10-pin connector. Disconnect these from TCU to cut off power and data.IMG_6005.jpg
  3. With all cables disconnected, press the hinge of the TCU mounting bracket to loosen its grip and remove the box.
  4. If there is no intention to use the removed TCU in another vehicle, its monthly service charge can be discontinued by processing a Service Deactivation form.

For more information on how to process this change, please consult our Service Deactivation guide.
(https://support.zonarsystems.net/hc/en-us/articles/360018642552-Service-Deactivation)

Uninstalling a Data I/O Cable

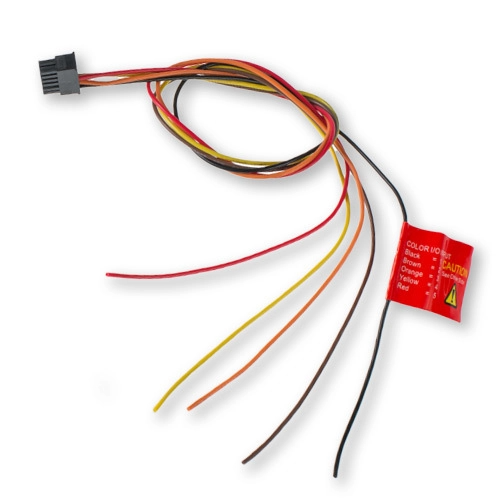

When a Zonar 5-pin data I/O cable is used, a male 12-pin connector is plugged into the TCU. This plug contains five insulated wires.

  1. Follow these wires from the 12-pin connector and disconnect them from their end sources.
  2. Once all five wires have been disconnected from their end sources, unplug the 12-pin connector from the TCU.


Uninstalling a Samsung Tab Active Tablet

  1. Remove the Samsung Tab Active series tablet from the docking station.
  2. Unplug the power/serial dock adaptor 6-pin connector and the Tab Active USB cable from the docking station.
  3. Remove the docking station and RAM mount.
  4. Unplug the 4-pin connector from the telematics bundle from the short 4-pin connection on the Tab Active power/serial bundle.
  5. Unplug the 8-pin connector from the TCU.
  6. If the TCU is not being removed from the vehicle, plug the 4-pin connector from the cable bundle into the TCU.

For visual reference of parts mentioned, please refer to our Samsung Tab Active Installation Guide
(https://support.zonarsystems.net/hc/en-us/articles/360025527311-Samsung-Tab-Active-Tablet-Installation-Guide)

Unassigning GPS IDs in Ground Traffic Control

  1. Log into Ground Traffic Control.
  2. Click Manage>Assets>Assets.
  3. Scroll through the listed assets or use the search tools to find the asset.
  4. Select the checkbox next to the asset and click the Edit button to open the edit window. You can also click the Edit Asset button (pencil icon) to the right of the asset’s row.

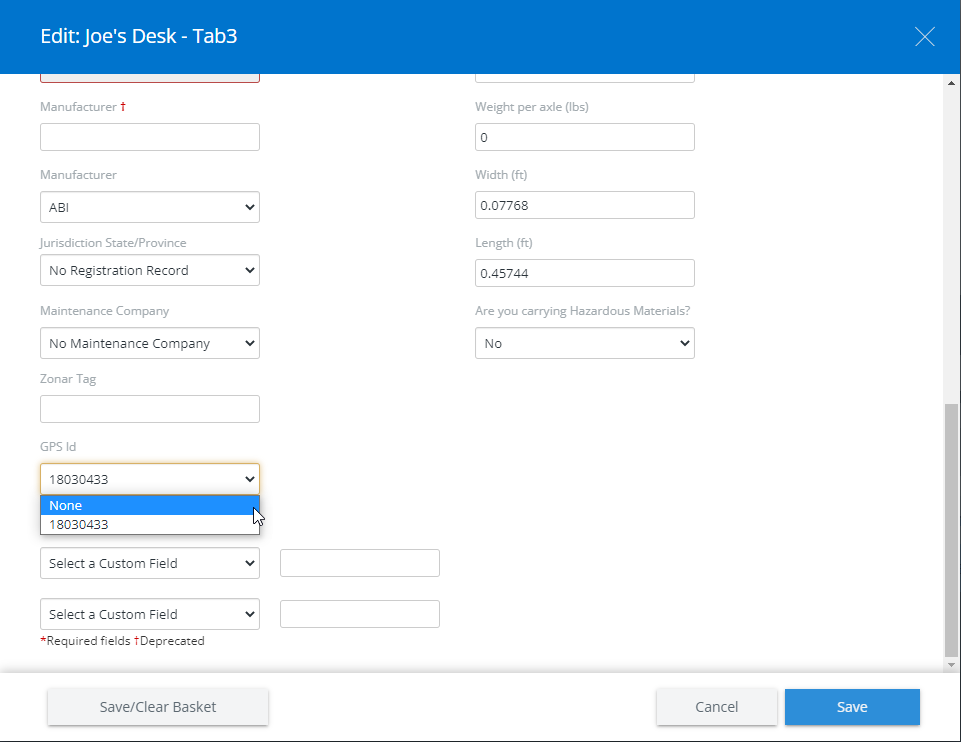

  5. In the “Edit Asset” window, click the GPS ID drop-down field.
  6. Change the assigned ID to None.
  7. Click Save.




Making an Asset Inactive

  1. Log into Ground Traffic Control.
  2. Click Manage>Assets>Assets.
  3. Scroll through the listed assets or use the search tools to find the asset.
  4. Select the checkbox next to the asset and click the Edit button to open the edit window. You can also click the Edit Asset button (pencil icon) to the right of the asset’s row.

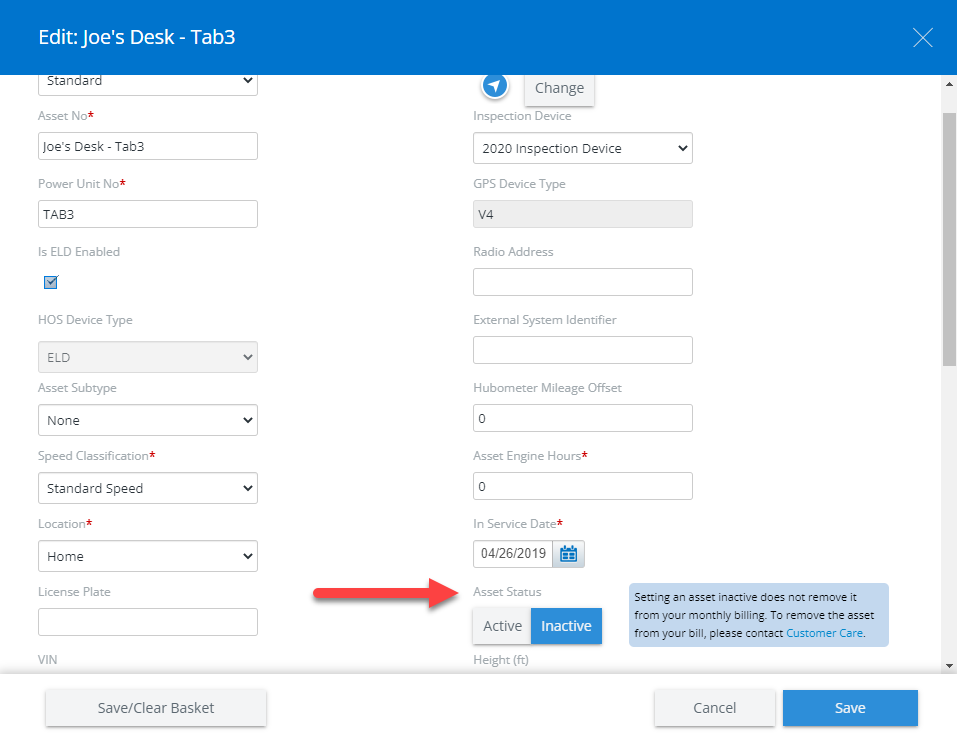

  5. In the “Edit” window, scroll until you find the Asset Status.
  6. Select Inactive .
  7. Click Save.

Please be aware that setting an asset profile as "Inactive" will only remove the profile from being accessible in active reports in Ground Traffic Control. It will not delete any data associated with the profile. Should you ever need to access the asset profile again update your Manage Assets search filter to include or search for "Inactive Assets".






Assigning GPS IDs

  1. Log into Ground Traffic Control.
  2. Click Manage>Assets>Assets.
  3. Select the checkbox next to the asset and click the Edit button to open the edit window. You can also click the Edit Asset button (pencil icon) to the right of the asset’s row.

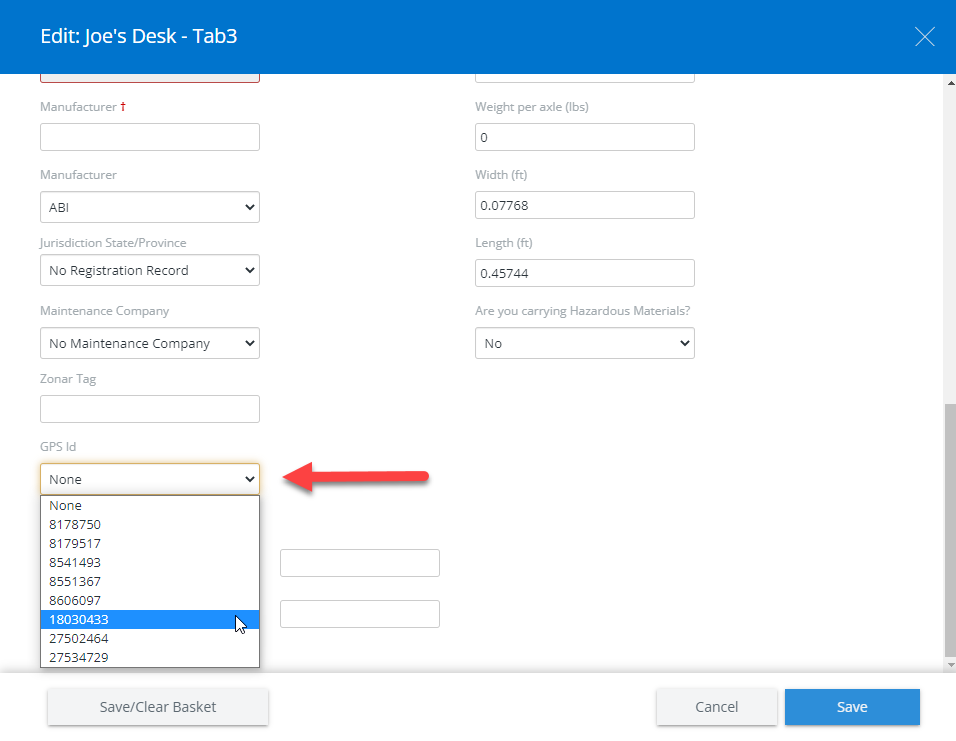

  4. In the “Edit Asset” window, click the GPS ID drop-down field. All unassigned GPS IDs are listed.
  5. Select the ID matching the GPS unit installed in the vehicle.
  6. Click Save.
