Zonar GPS units support a diverse set of cabling. The the purpose of this guide is to provide an overview of the installation cabling, adaptor parts, accessory cabling, and converter kits compatible with Zonar GPS devices. Each cable, kit, and part listed below is available for purchase from Zonar's online store.
For vehicle-specific and tablet cabling recommendations please consult Zonar's Vehicle-Specific Installation and Tablet installation guides.
Diagnostic Port Installation Cables
| Cable | Description | Notes |
|

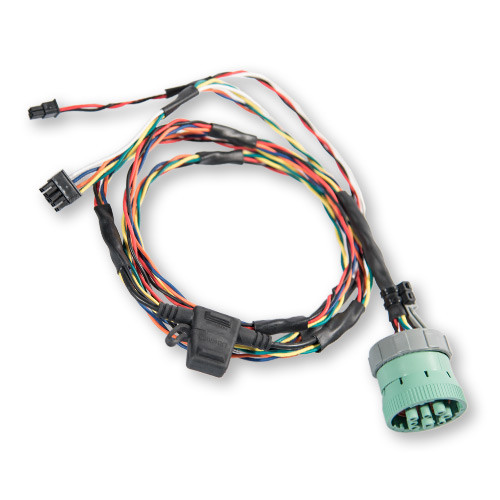

9-Pin Diagnostic Cable Part Number 81523 |
9-Pin diagnostic port installation cable for Zonar GPS units. Recommended for heavy duty vehicles. |
Backwards compatible with 250k baud vehicles. Link to purchase. |
|

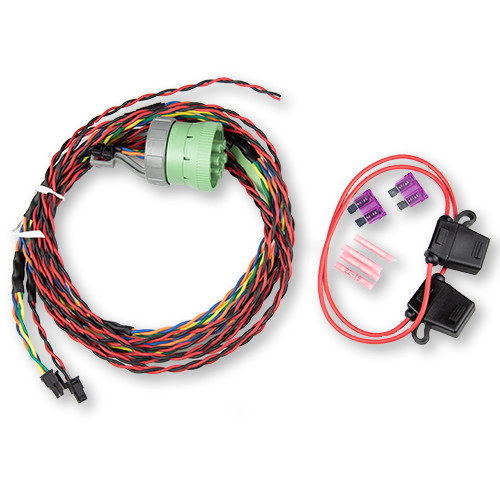

9-Pin 500k Diagnostic Cable Part Number 81597 |
500k 9-Pin w/ power and ground breakout to wire around a kill switch (for ELD purposes). Recommended for heavy duty vehicles. |
Backwards compatible with 250k baud vehicles. |
|

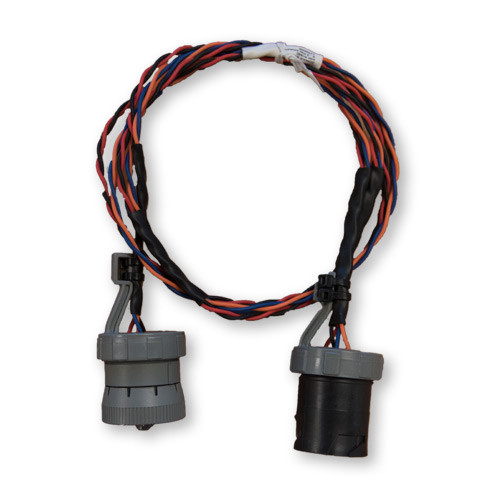

6-Pin to 9-Pin Adapter Cable Part Number 81632 |
Adapter to convert 9-Pin connector to 6-Pin connector for JBUS cables. Recommended for heavy duty vehicles. |
Link to purchase. |
|
9-Pin J1939 500k Y-Splitter Part Number 81658 |
9-Pin diagnostic connector with Y-Splitter cable. Supports two connections. Recommended for heavy duty vehicles. |
Backwards compatible with 250k baud vehicles. Link to purchase.
|
|

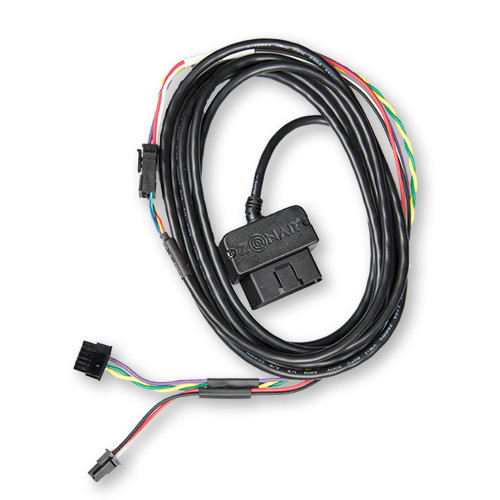

GPS Light Duty Cable Kit Part Number 81153 |
OBD II installation cable for Zonar GPS units. Recommended for light duty vehicles. |
Note: Data gathered by cable may not be consistent across all OBD II supported vehicle makes and models. Light Duty Cable can receive over the air firmware updates. Firmware versions applied to Light Duty Cables can be viewed in the GPS Unit Health report. Link to purchase.
|
|
OBD II Y-Splitter Cable Part Number 81641 |
OBD II connector for Zonar GPS units with Y-Splitter cable. Supports two connections. Recommended for light duty vehicles. |
Note: Data gathered by cable may not be consistent across all OBD II supported vehicle makes and models. Link to purchase.
|
|

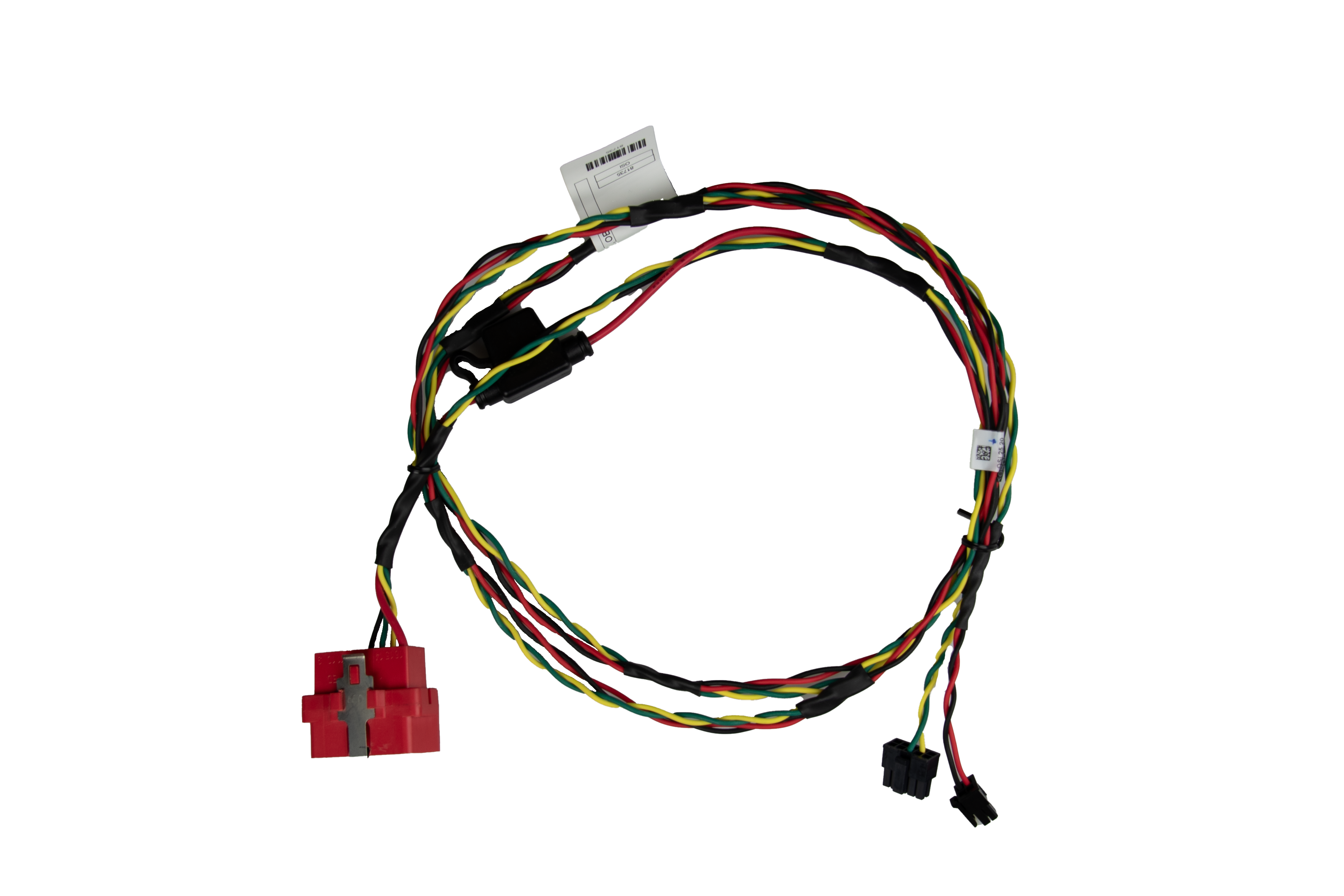

Cable Assembly RP1226 (Universal) Part Number 81670 |
14-Pin installation cable for Zonar GPS units. Compatible with heavy duty vehicles that have RP1226 diagnostic ports. |
Note: Data gathered by cable may not be consistent across all RP1226 supported vehicle makes and models. Link to purchase.
|
Backbone & Installation Cables
| Cable | Description | Notes |
|

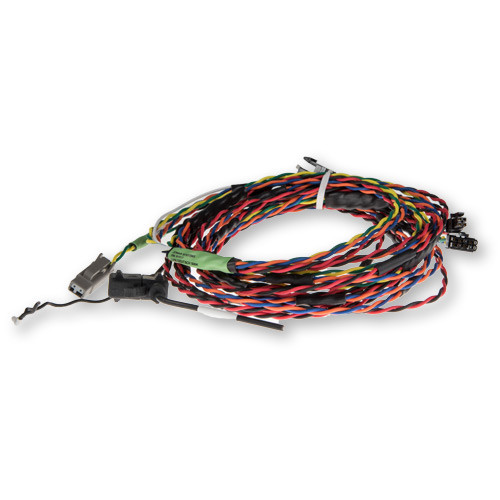

Deutsch 2-Pin Cable Part Number 81517 |
500k 2-Pin JBUS backbone installation cable for Zonar GPS units. |
Rectangular connector tips designed to work with semis and similar heavy duty asset types. Backwards compatible with 250k baud vehicles. Link to purchase.
|
|

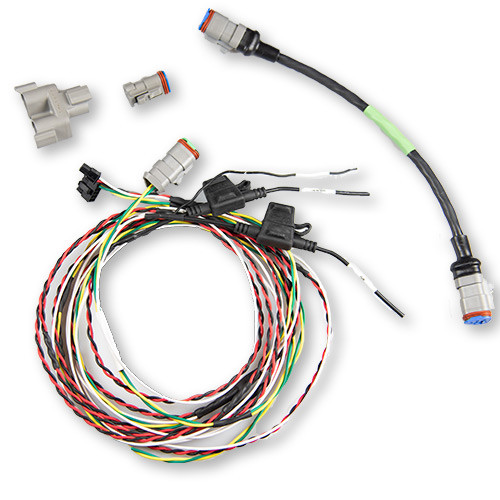

3-Pin Deutsch Cable Kit Part Number 81652 |
500k 3-Pin Deutsch cable kit. Comes with a 3-Pin JBUS backbone installation cable for Zonar GPS units, terminating resistor, Y-Splitter, and extension cable. |
Triangle connector tips designed to work with transit assets. Backwards compatible with 250k baud vehicles. Link to purchase.
|
|

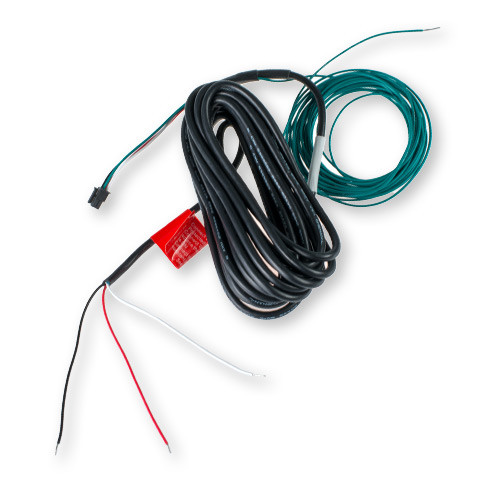

GPS 4-Pin Power Cable with Chassis Ground Part Number 10030 |
4-Pin installation cable for Zonar GPS units. Comes with chassis for ground. |
|
|

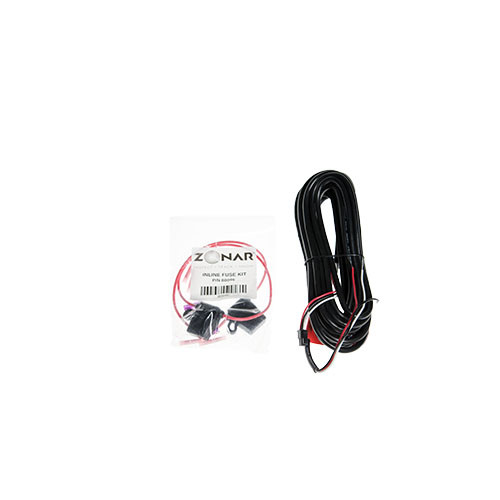

GPS 4-Pin Power Cable Assembly Part Number 10085 |
4-Pin installation cable for Zonar GPS units. |
Link to purchase.
|
|

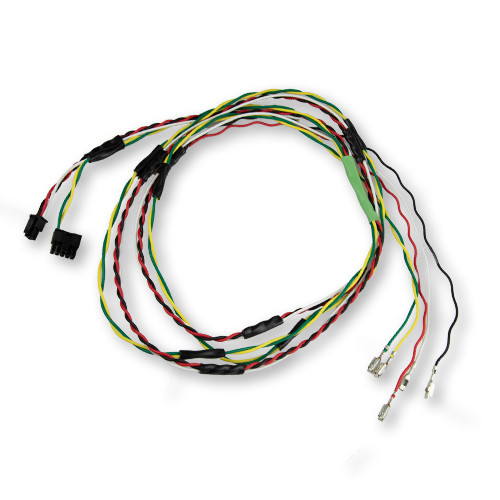

Next Gen Cascadia Retrofit Cable Part Number 81635 |
Installation cable for Zonar GPS units designed for Next Gen Cascadia vehicle models. |
Link to installation guide. Link to purchase.
|
|

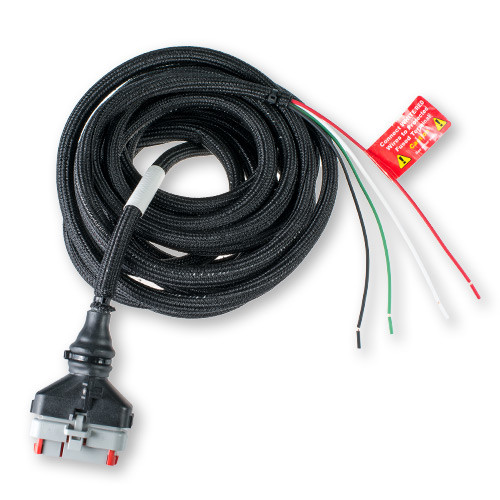

Zonar V4R Power Cable Part Number 81313 |
Ruggedized cable used for installations of Zonar V4R GPS units. |
Link to installation guide. Link to purchase. |
|

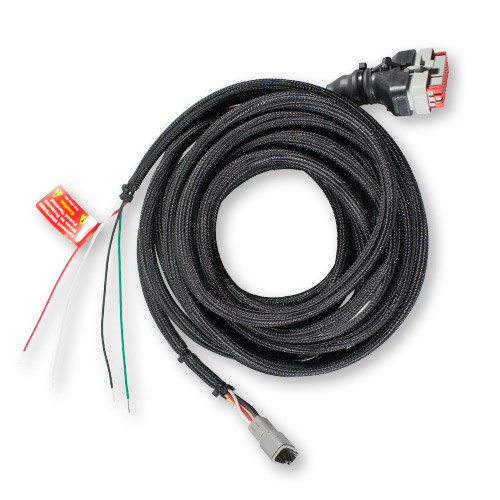

Zonar V4R Power Cable with EVIR and Inputs Part Number 81326 |
Ruggedized cable used for installations of Zonar V4R GPS units. Comes with adapter node to allow EVIR support. |
Link to installation guide. Link to purchase.
|
Adaptor Cables and Parts
| Cable | Description | Notes |
|

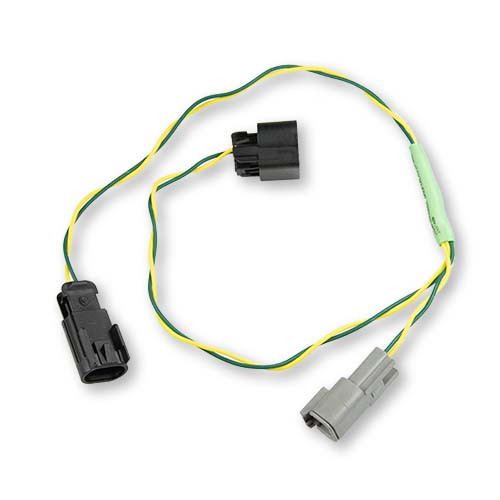

J1939 Universal Node DelphiGT 500k Part Number 81530 |
Adaptor node cable for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

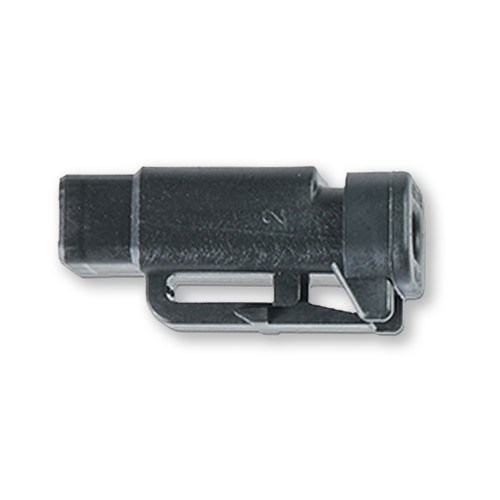

2-Pin Deutsch Terminating Resistor Part Number 80083 |
Terminating resistor adaptor for the Deutsch 2-Pin Cable. |
Link to purchase. |
|

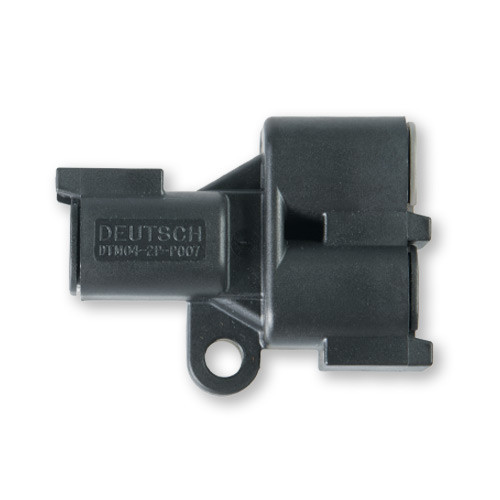

2-Pin Deutsch Y-Splitter Part Number 80082 |
Y-Splitter adaptor for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

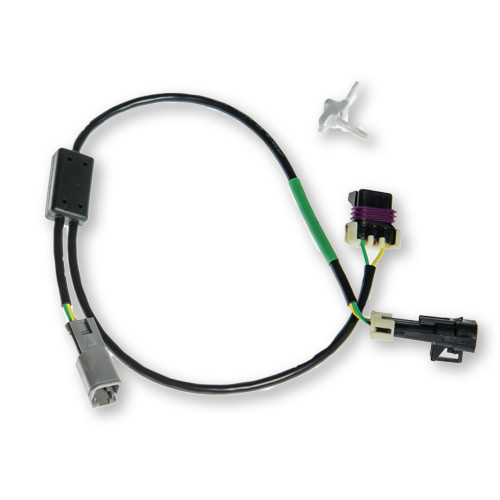

Met150 2-Pin Universal Node Cable Part Number 81527 |
2-Pin Met150 adaptor for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

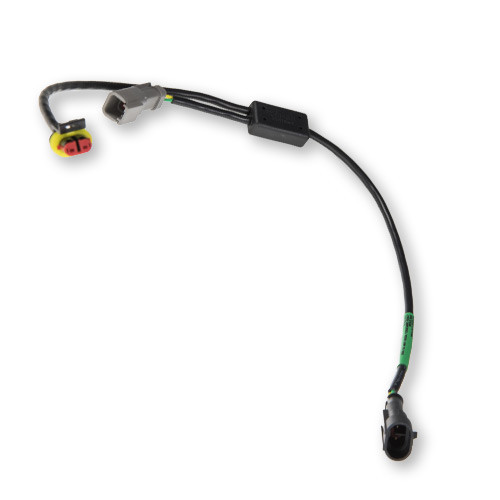

AMP 2-Pin Universal Node Super Seal Cable Part Number 81526 |
2-Pin AMP super seal adaptor for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

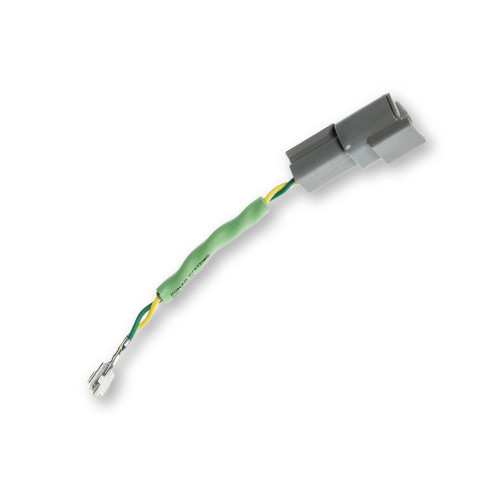

Splice Pack Adapter Cable Part Number 81532 |
2-Pin splice pack adaptor for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

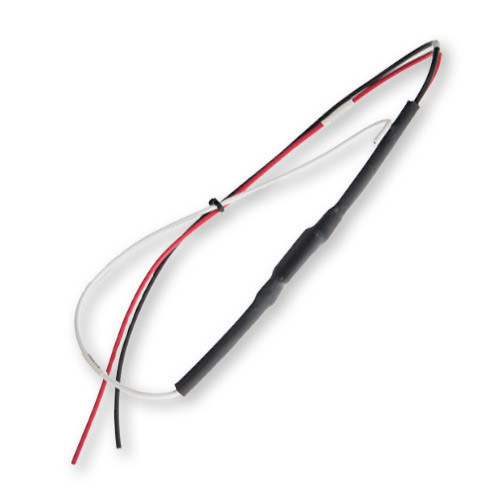

R-Terminal Adapter Part Number 81303 |
Adapter for the Zonar V3R Power Cable. Allows connection to R-terminal on alternator. |
|
|

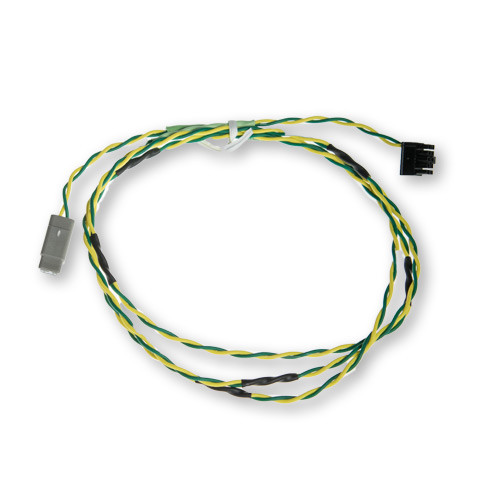

10-Pin to 2-Pin Retro Adapter Cable Part Number 81528 |
DTNA 500k JBUS 2-Pin to 10-Pin power cable. |
Note: VTHU only. Link to purchase.
|
Accessory Cables
| Cable | Description | Notes |
|

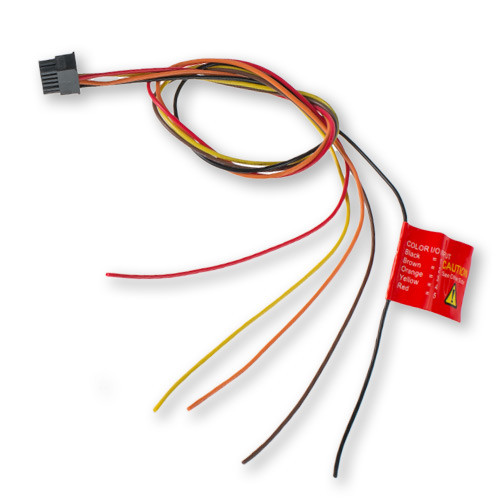

Discrete I/O Part Number 80059 |
Zonar GPS data cable for tracking input/output connections. Supports five I/O connection wires:
|
I/O inputs can be specified in Ground Traffic Control through the Input Labels menu. I/O order listed on cable tag. Link to purchase.
|
|
GPS Panic Button Part Number 80531 |
Panic button add-on for Zonar GPS units. |
Panic Button support requires ZAlerts to be enabled in Ground Traffic Control. Installation and alert set up instructions can be found here. Link to purchase. |
|

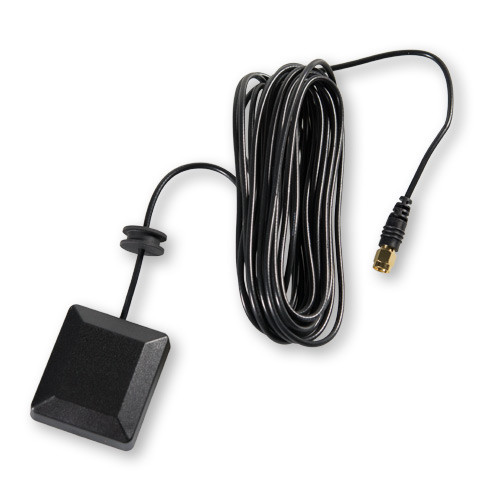

External GPS Antenna Part Number 81304 |
External GPS antenna for Zonar GPS units. |
Connects to GPS via coaxial cable. Link to purchase.
|
|
4-Pin Power Cable (110AC/12VDC) Part Number 80989 |
4-Pin power cable for Zonar GPS units with AC adapter. |
Link to purchase. |
|

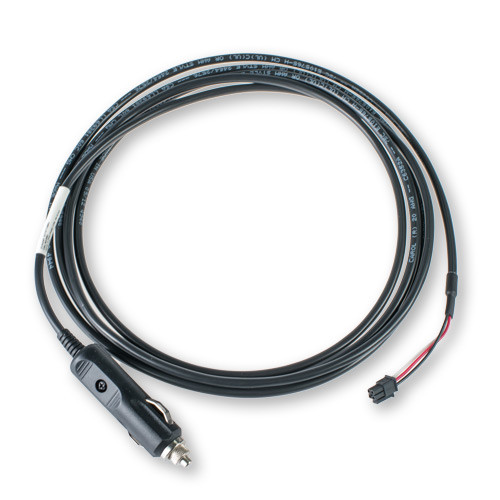

GPS 4-Pin Power Cable with Cigarette Lighter Adapter Part Number 80260 |
4-Pin power cable for Zonar GPS units with cigarette lighter adapter. |
Note: this cable must be unplugged when not in use. Leaving the cable plugged into the cigarette lighter will drain vehicle battery when engine is powered off. Link to purchase. |
Extension Cables
| Cable | Description | Notes |
|
Backbone Extension 500k Cable Part Number 81524 |
2-Pin male-to-male adaptor for the Deutsch 2-Pin Cable. |
Link to purchase.
|
|

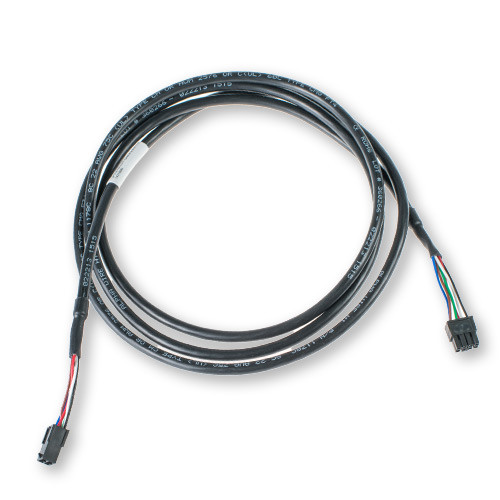

GPSVM Extension Cable Part Number 80038 |
2010 cradle extension cable. |
Link to installation guide. Link to purchase.
|
|

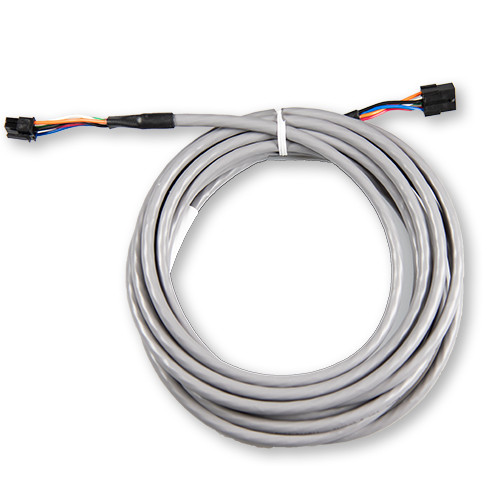

8-Pin GPS Extension Cable (14ft) Part Number 81655 |
8-Pin extension cable for Zonar GPS units. |
Link to purchase.
|
4G Converter Kits
| Cable | Description | Notes |
|
4G Converter Kit - Sierra Wireless Part Number V4301-H |
Converts a V3 telematics unit to operate with 4G cellular networks. Comes with a converter box, converter cable, and two paddle antennas. |
Only compatible with V3 GPS units that have a firmware version of 3.8.122. Link to installation guide. Link to purchase. |
|

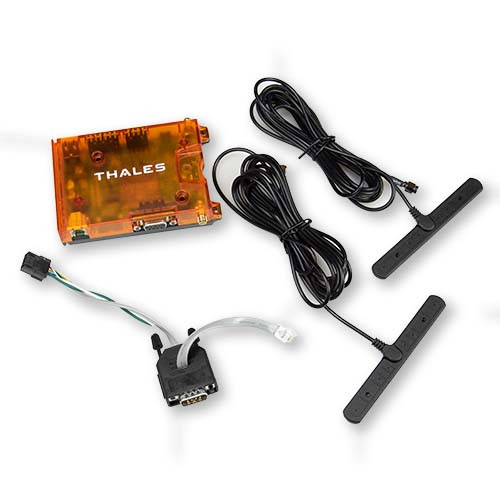

4G Converter Kit - Thales Part Number V4303-H |
Converts a V3 telematics unit to operate with 4G cellular networks. Comes with a converter box, converter cable, and two paddle antennas. |
Only compatible with V3 GPS units that have a firmware version of 3.8.123 or newer. Link to installation guide. Link to purchase. |
|

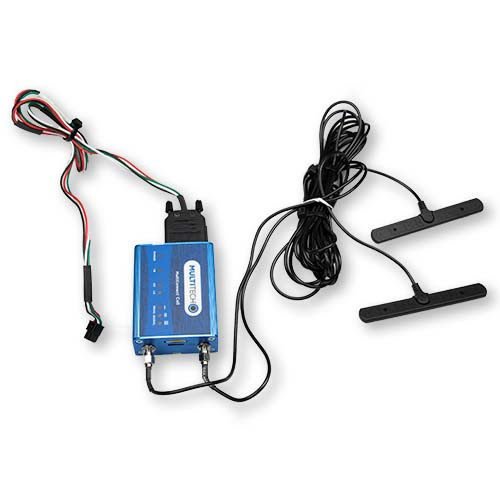

4G Converter Kit - Multitech Part Number V4302-H |
Converts a V3 telematics unit to operate with 4G cellular networks. Comes with a converter box, converter cable, and two paddle antennas. |
Only compatible with V3 GPS units that have a firmware version of 3.8.122 or newer. Link to installation guide. |
