Path (Legacy)

  • Last edited on

To access the Path report, on the main menu, click Reports, under GPS Track & Trace, select Path.


The Path report provides path data for up to five assets total, each color-coded. These paths can have several events displayed that may have occurred over the duration of the path, including I/O, motion start and stop, and power on and off. These path events are displayed on a map. You can export these to a variety of formats. You can also narrow the search results for specific dates and times.

A benefit of this report is it gives you a visual, historical record of a vehicle's travels.
In the Filter pane, define the following criteria to narrow your search results for display on the map and in the results table. Learn more about using Maps in GTC.

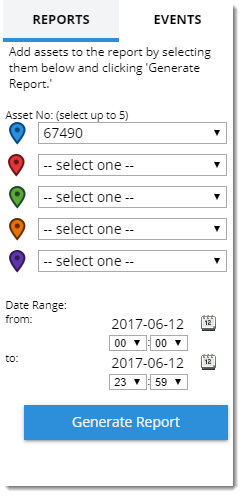

  1. Click the Reports tab to define filter criteria for the report.
  2. Expand each Asset No dropdown menu and select an asset from the list you for which you want data.
  3. Define a Date Range From and To value to limit the data returned between that range.
  4. Click Generate Report.

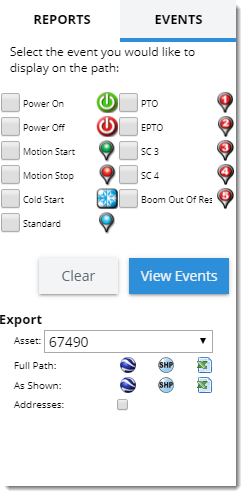

  1. Click the Events tab to define the events types that occur along the path of an asset. These events will appear on the map only.
  2. Click the checkbox next to the event type for which you want to search. Options include:
    • Power On: The location the asset was powered on.
    • Power Off: The location the asset was powered off.
    • Motion Start: Where the asset started moving.
    • Motion Stop: Where the asset parked or stopped moving.
    • Cold Start: Where the GPS unit was booted or re-booted (loss of constant power).
    • Standard: A point where the GPS device uploaded a GPS point.
    • SC 1 – 5: These are associated with I/O 1 – 5 that are connected to a GPS device. This is an optional Zonar feature.
      • Plow or Door
      • Boom
      • Dome Light
      • Door Open
      • Engine hood open
  3. Click Clear to delete your selection(s) or click View Events to view them on the map. Each event type will appear on the map along the asset’s path using the corresponding icon.
  4. Under Export, expand the Asset dropdown menu and select an asset from the list. This list contains all assets that you selected on the Reports tab.
  5. Click one of the following export types to export the data using that format:
    kml-icon.png export to Google Earth KML file
    shp-icon.png export to Shapefile
    excel-icon.png export to Excel file

    If you export this data to an Excel CSV file and want to include addresses, then select the Addresses checkbox before clicking the icon.

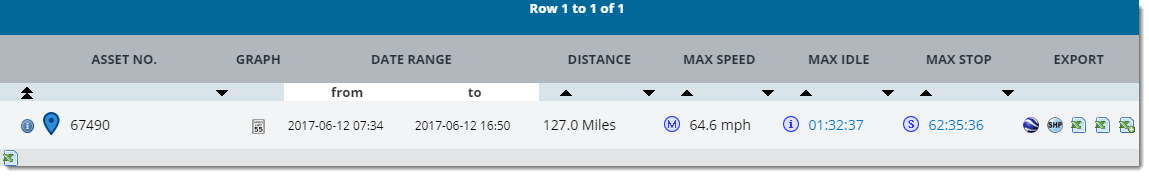

The results table displays the following:

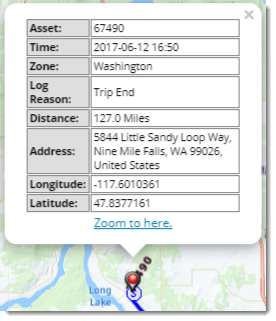

Asset No Displays the asset that is being reported. Click the info asset-info-icon.png icon to display the available information for the asset.

Date Range Displays the date specified in the filter (From date).
Distance Displays the total distance traveled during the path being reported.
Max Speed Displays the maximum speed during the path being reported. Click max-speed.png to display the location of the event on the map.
Max Idle Displays the maximum idle time during the path being reported. Click max-idle.png to display the location of the event on the map. Click the time link to display the Idle Time report.
Max Stop Displays the maximum amount of time the asset was stopped during the path being reported. Click max-stop.png to display the location of the event on the map. Click the time link to display the Stop Time report.
Export Choose a format to export the path report:
kml-icon.png KML file for Google Earth
shp-icon.png Shapefile for ArcGIS
excel-icon.png Driveline file
excel-icon.png CSV file for Excel
csv-addresses-icon.png CSV file with addresses

Export Options

The Path report offers several different ways to export the GPS data to allow for use outside Ground Traffic Control. The following section explains the difference between the various options, as well as the fields for the spreadsheet options.

kml-icon.png KML File

KML files can be used to view the vehicle's path in Google Earth. Information on importing the KML file into Google Earth can be found on the Google support site.

shp-icon.png Shapefile

Shapefile exports are a ZIP file containing four files: DBF, SHP, SHX, and PRJ. This ZIP file can be used with geographic information system (GIS) applications such as ArcGIS. More information can be found on the Shapefile Wikipedia page.

excel-icon.png Driveline file

The Driveline export was created to provide a easy to use custom report for Driveline, a third-party application designed to assist with IFTA reporting. This application is no longer available, but the report may still be used if desired.

The Driveline export is a CSV that may be viewed in Excel, using the following columns of data per logged GPS point:

Column Header Excel Column Data Description
Tractor Reference Number A The asset number of the vehicle
Date B The date in YYYYMMDD format
Time C The time in HHMMSS format (24-hour)
Latitude D GPS Latitude
Longitude E GPS Longitude
Odometer F Odometer value
Odometer Unit of Measure G Will be either MI (miles) or KM (kilometers)
Heading H Cardinal direction in which vehicle is moving
Engine Status I Whether the engine is on or off
Fuel J The amount of fuel used since the last time the GPS unit rebooted or gained power
Fuel Unit K Will be either G (gallons) or L (liters)
EXSID L External System ID as entered in Manage Assets
Asset Id M Internal database ID of the asset
Location N The GTC location the asset is listed under in Manage Assets
Speed(MPH/KPH) O Speed of the asset using listed units
Acceleration P Current acceleration comparing listed data point to polled data point 1 second earlier (not necessarily last logged data point). Value is in decimeter/sec2; ex. -8 = -0.8 m/s2 = -1.8 mph/s (multiply value by 0.22369 to get mph/s)
Distance(Miles/Kilometers) Q Distance traveled since the beginning of the time range of the report (will always start at 0) using listed units
Reason R Indicates the type of GPS point. See Reason Codes for a listing.
Status S A bitmask encoding of information sent with the GPS point. To decode the Status value, refer to Status Mask.

Refer to Reason column for the same information in user-readable format.
Fuel Level T Provides current level of fuel tank if available from ECM.
Fuel Capacity U Provides capacity of fuel tank if available from ECM.

excel-icon.png CSV file

The CSV file is a human-readable file that can be opened in Excel. It provides the same information as the map-based path report, but in a spreadsheet. This file can be customized extensively via the API (refer to Export A Path documentation), but the export on the website provides the following data:

Column Header Excel Column Data Description
Asset ID A Internal database ID of the asset
Asset No. B The asset number of the vehicle
Date C The date in MM/DD/YYYY format
Time(PST) D The time in HH:MM:SS format (24-hour)
Parentheses indicates timezone used
Speed(MPH/KPH) E Speed of the asset using listed units
Heading F Cardinal direction in which vehicle is moving
Log Reason G Indicates the type of GPS point
Distance Traveled (Miles/Kilometers) H Distance traveled since the beginning of the time range of the report (will always start at 0) using listed units
Lat I GPS latitude
Lon J GPS longitude
Zone K The name of the smallest geofence in which the GPS point was logged
Address L Blank for CSV file option
Source M Indicates whether odometer & velocity for this GPS point came from ECM or GPS

csv-addresses-icon.png CSV file with addresses

This option is exactly the same as the CSV file, except the Address field is filled in:

Column Header Excel Column Data Description
Address L Shows the closest available address
Address is reverse-geocoded by HERE based on the latitude/longitude
