When a vehicle's onboard camera reports that a roadside or cabin-facing event has occurred it will record a video clip of the incident. The Video tab is where these events are displayed.
In order for a camera to provide events it needs to be deployed to Zonar Ignition and installed in a vehicle. After an event is generated, it will be available for review for 90 days before it is automatically deleted.
Cameras are automatically configured to capture events. If a camera has not had its label updated the Unit field of events it generates will display the device's serial number. Deployed cameras, labels and alert sensitivity can be reviewed and adjusted in the Camera Management menu of the Manage tab.
Glossary
Add : Visible in the Requested tab. Allows users to generate custom video clips from recent trips.
Delete : Removes an event from the active tab.
Restore : Returns an event from the Deleted tab to the Events tab.
Filter : Used to sort results based on Unit/Driver, Timeframe, Event Type, Media Type, and Review Status.
Export/Download : Has two functions:
- Exports listed data from the active tab in a CSV or PDF file format.
- Downloads a MP4 file of a selected event.
Share : Available in the Events, Requested, and Deleted tabs. After selecting a video clicking this icon allows users to send a copy of the video to a contacts outside of Zonar Ignition.
Change Status : Used to change an event's status.
Starred : Click to save an event to the Starred tab.
Settings : Click to Delete, Share, Change Status, or Assign Drivers to an event.
Using the Video Tab

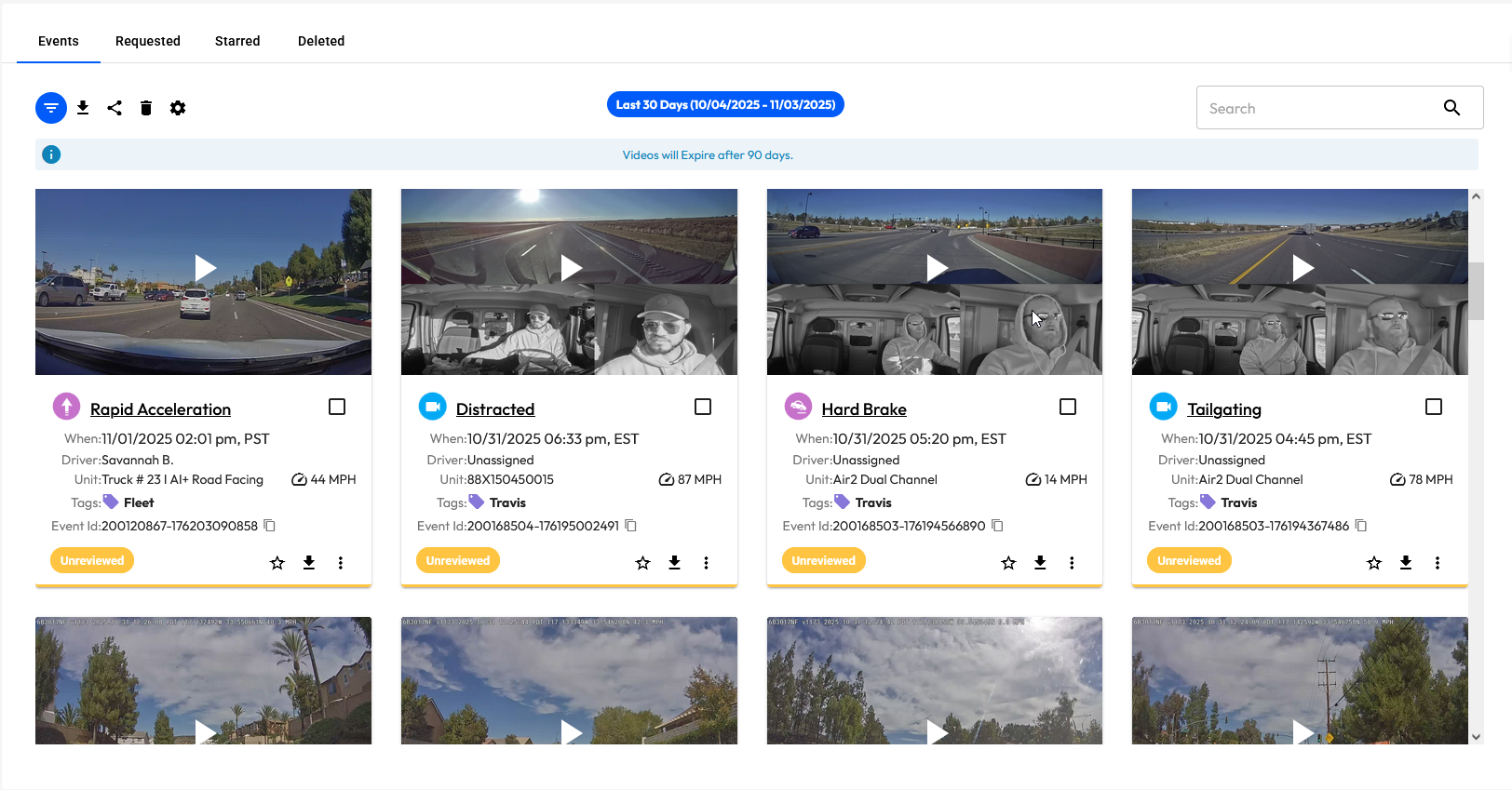

The Video tab is broken up into four menus. Each tab has a specific feature designed to give users flexibility with the clips that their fleet records.
Events

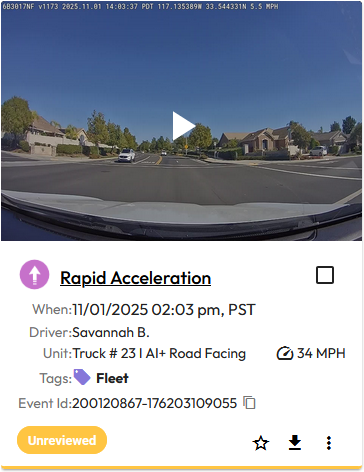

The Events tab is where Zonar Ignition populates camera alerts. Events display in reverse chronological order in the form of cards.
These cards provide a summary of the recorded event along with a video clip of what the vehicle's onboard camera recorded. Administrators can use these cards to review, edit, and save copies of the event.

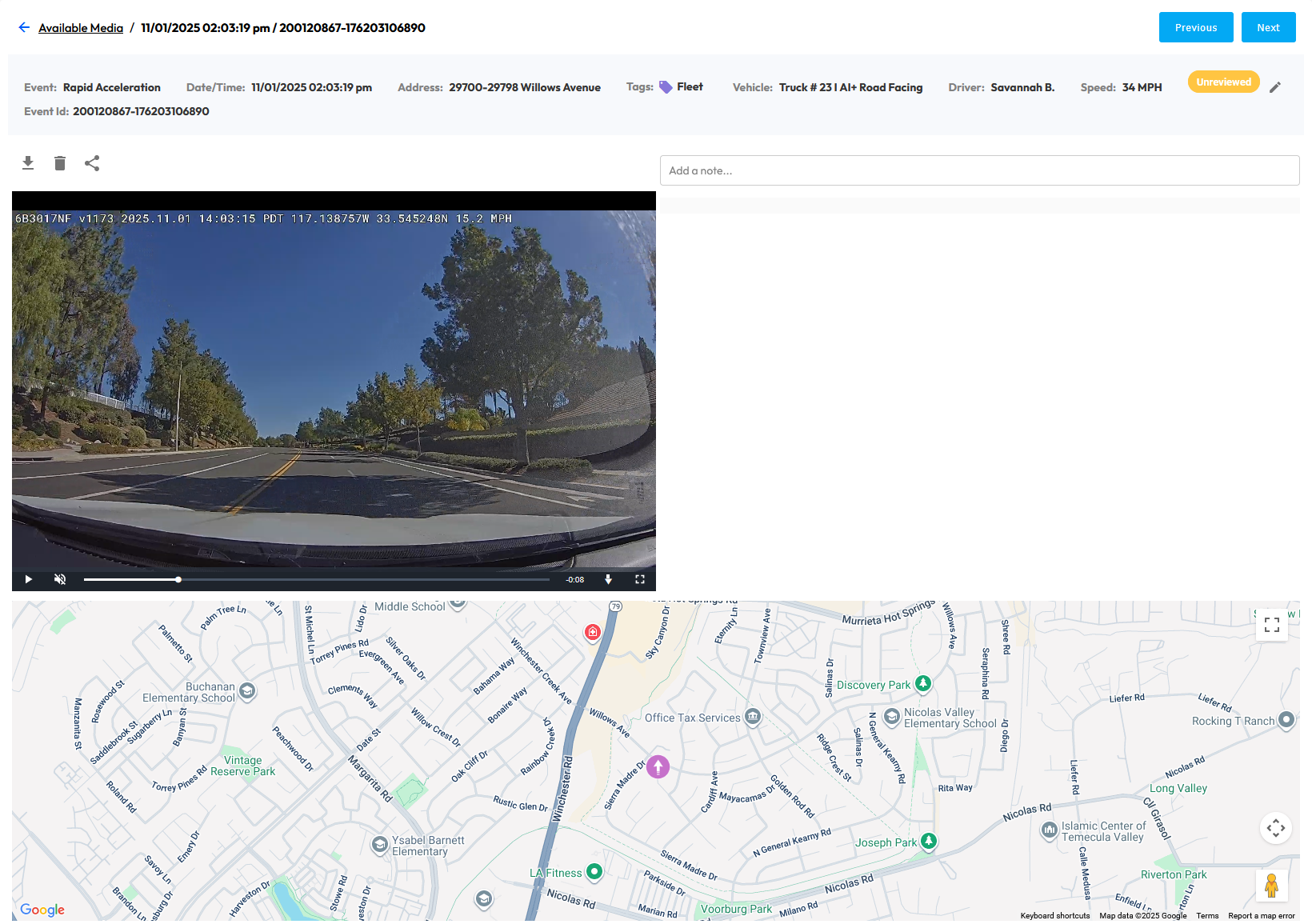

By clicking the title of a card, an event can be expanded.
In addition to the summary data seen on the condensed event, expanded event cards provide provide higher resolution video along with a map showing where the event occurred.
How to Change an Event's Status
- Navigate to an event card.
- Click Change Status
.
- Select a Review Status. There are five available options:
- Unreviewed: The event not yet been reviewed by an administrator.
- Reviewed: The event has been reviewed by an administrator.
- False Positive: The event's content did not meet the configuration standard.
- Accepted: The driver assigned to the event accepted the administrator's designation.
- Disputed: The driver assigned to the event rejected the administrator's designation.
- In the Notes box, enter a justification for the chosen review status.
- Optional: If desired, check Visible to driver to notify the event's assigned driver of the status change.
- Click Save.
How to Assign A Driver to an Event
- Navigate to an event card and click the Settings
icon.
- Click Assign Driver.
- Click Driver drop menu and select a driver profile.
- Click Save.
How to Star an Event
- Navigate to an event card.
- Click the event's Star
icon.
The event will now appear in the Starred tab.
How to Download an Event
- Navigate to an event card.
- Click download
.
A MP4 file of the recording will download to your computer. Refer to your browser's downloads history for the file location.
How to Share an Event
- Navigate to an event card and click its checkbox
.
- Click Share
.
- Choose the delivery method for the event:
- Email: Enter the email address of the contact.
- Phone: Enter the cellular phone number of the contact.
- Contacts: Select an existing contact. Contacts can be added in the Account tab.
- Click Send.
How to Delete an Event
- Navigate to an event card and click its checkbox
- Click Delete
.
- In the Notes box, enter a justification for why the event is being deleted.
- Click Delete.
The event will be removed from the Events tab and moved to the Deleted tab.
If this action is performed in the Requested tab the event will only be removed.
Requested
The Requested tab allows users to pull video recordings from prior trips. As long as the footage is still saved on the camera, clips up to five minutes in length can be downloaded.
How to Request a Video Clip
- Click Add
.
- Click the Select drop menu and choose a vehicle.
- Click the Date drop menu and select a date.
- Review the hour grid and click on the blue camera activity block closest to the desired time.

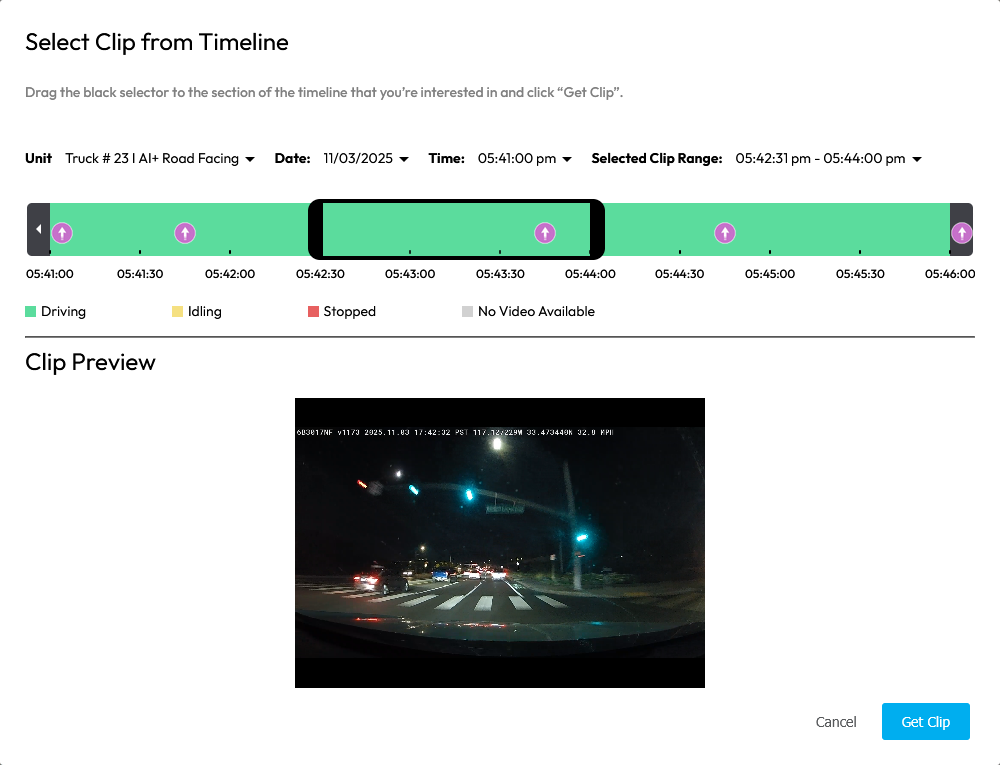

Select Clip from Timeline
Any video that can be requested will be bracketed in Green, Yellow, or Red.
- Click and drag the edges of the selector box to adjust the length of the clip.
- Minimum clip length is 60 seconds (1 minute).
- Maximum clip length is 300 seconds (5 minutes).
- Length time can also be adjusted by clicking Selected Clip Range.
- Optional: Under Clip Preview click the play icon to see the requested clip before downloading.
- Click Get Clip.
A MP4 file of the recording will download to your computer. Refer to your browser's downloads history for the file location.

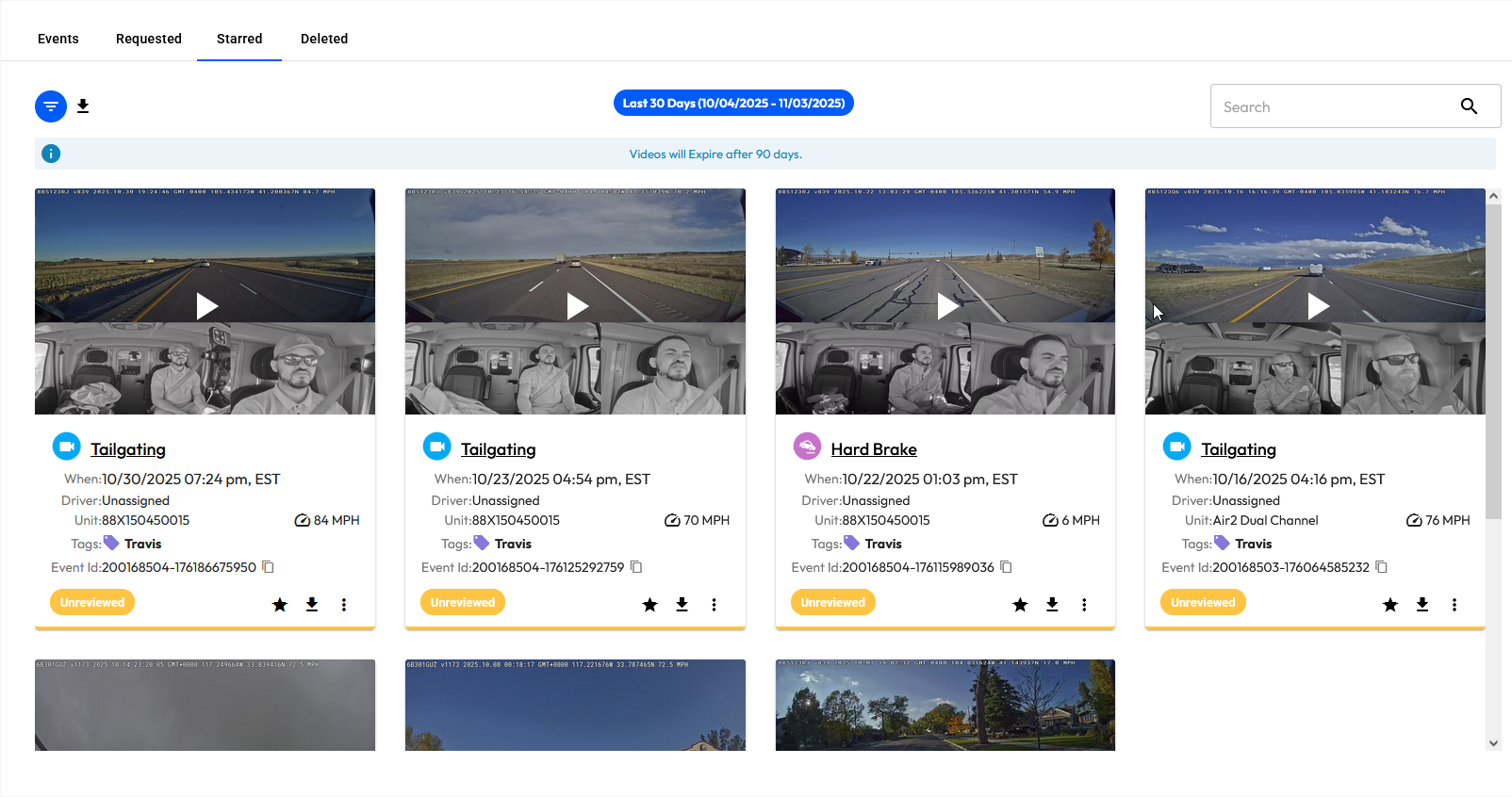

Starred
The Starred tab allows users to save events that may need a more in depth review. Whenever a user clicks on an event card's Starred icon, that event will be copied to the Starred tab. From this tab, users can Share, Change Statuses, and Assign Drivers to events.
Events will display on this tab until either a user removes the event by clicking its Removed from starred icon or waiting for the event to expire.
Starred events are subjected to the 90 day availability period and will expire.

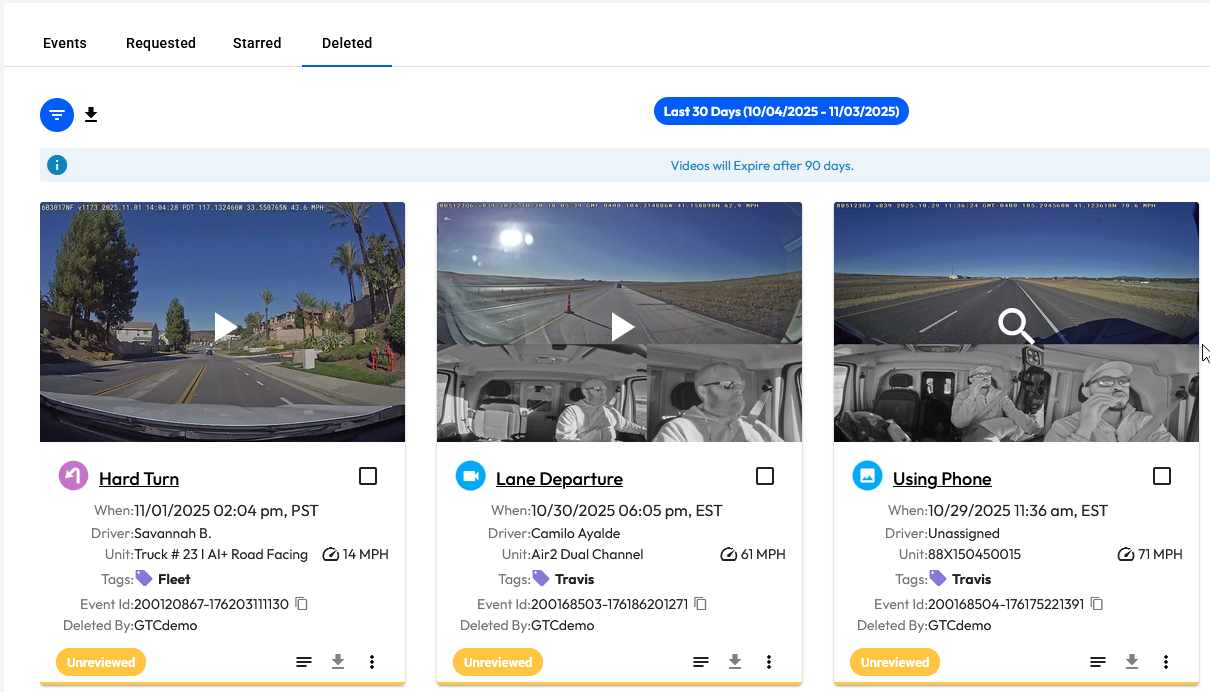

Deleted
The Deleted tab hosts any event that was removed from the Events tab and leaves it accessible until it expires.
Users can assign driver profiles to the events and--if necessary--restore the deleted event to the Events tab.
How to Restore a Deleted Event
- Navigate to the event card and click its checkbox
- Click Restore
.
Multiple events can be restored at once.
