The Zonar Coach™ Installer app can be used validate camera alignments, pair, and unpair cameras in Zonar Coach. It is intended to be used during the installation or removal of a Coach camera.
Downloading the Application
iOS
Zonar Coach Installer can be downloaded at the App Store on iOS devices:
From the App Store search for Zonar Coach™ Installer.
Tap Get.
Android
Zonar Coach Installer can be downloaded at the Google Play Store on Android devices:
From the Google Play Store search for Zonar Coach™ Installer.
Tap Install.
Logging In
To log into Zonar Coach Installer, enter a valid Ground Traffic Control user email and password.
Ground Traffic Control users must have the coachinstaller permission enabled. For guidance on updating user permissions please see the Admin Users guide.
Users with access to multiple Ground Traffic Control accounts will be asked to tap an account code before continuing.
Home Screen
After logging in the user will be met with the Home screen.
- Install Camera: Starts the process to assign Zonar Coach cameras to vehicle profiles.
- My Install History: Lists prior camera installations performed by the user.
- Asset + Camera List: Lists active vehicle profiles in the user's account along with any assigned camera IMEIs.
- How to Install Coach: Links to support documentation for Zonar Coach.
- Home: Toggles to Home screen. Icon will be colored blue when active.
- My History: Toggles to the My Install History screen. Icon will be colored blue when active.
- Assets: Toggles to the Asset + Camera List screen. Icon will be colored blue when active.
-
Your account: Provides tools and information sources for users:
- Check camera alignment: allows installers to review the camera alignments of local powered on and network connected cameras.
- Help and support: will link users to Zonar Coach customer support documentation and guides.
- Privacy policy: links to the Zonar Coach Privacy Policy.
- Open source licenses: lists what license support is used by Zonar Coach.
-
Zonar Coach terms of use: links to official Zonar Coach Terms of Use.
Installing a Camera
Coach Installer allows users to locate local cameras, pair cameras to vehicle profiles, and validate camera angles. The installation process is designed to ensure that vehicle pairing and camera visibility are accurate before regular use by drivers.
Find the Camera
From the Home Screen tap INSTALL CAMERA.

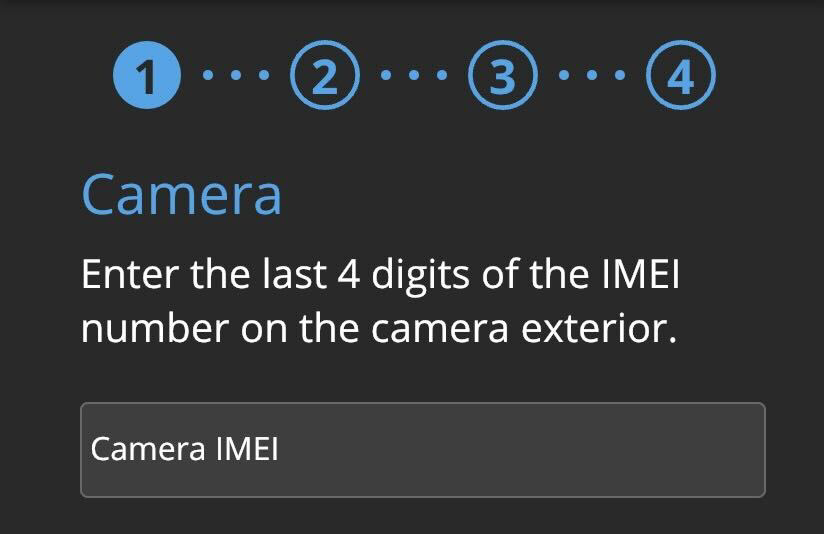

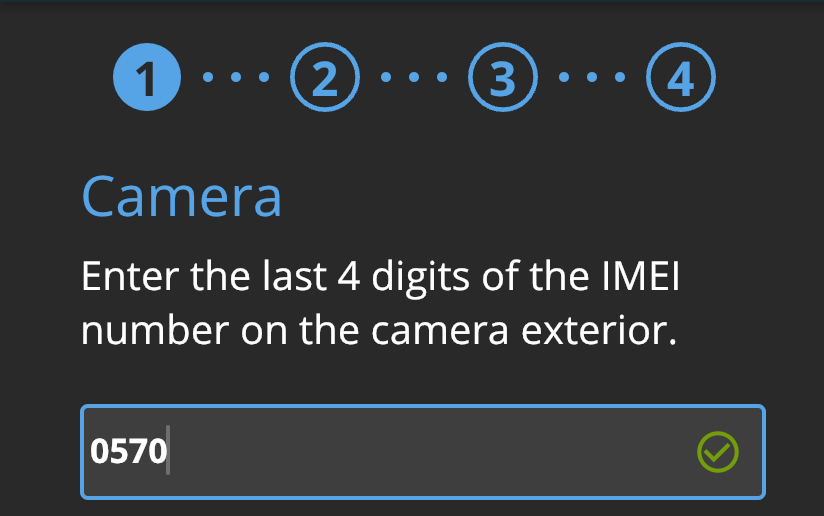

Tap the Camera IMEI field and use the keypad to enter the last four digits of camera's IMEI.
Camera must be powered on and have a network connection in order to be found.
Once an IMEI match has been identified, a green checkmark will appear in the Camera IMEI field.
Tap Done on the keypad and Coach will check if the camera has network connectivity.
When found, a green checkmark and Camera powered will populate under the Connectivity Info field.
Tap Next.
Select the Asset
Tap the Asset ID or VIN field.

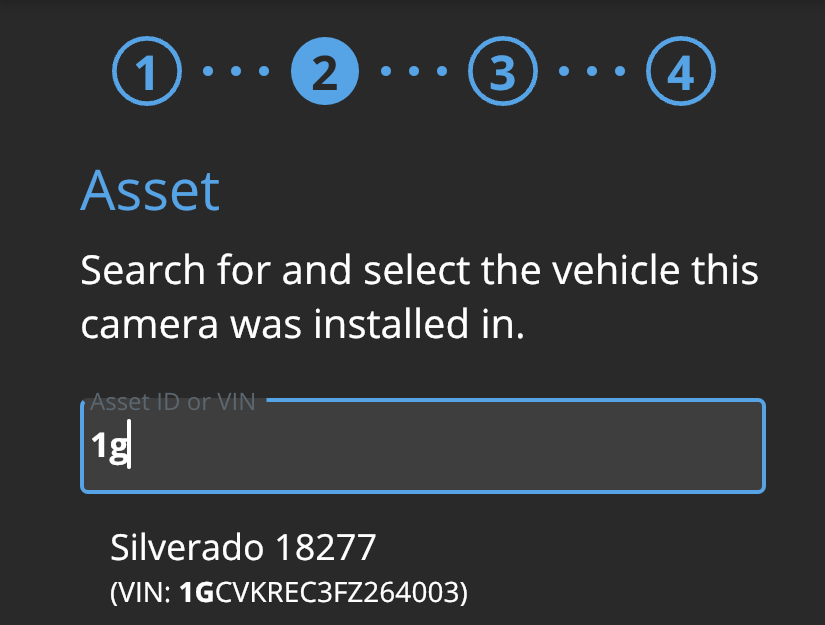

Use the keypad to enter either the Asset ID or VIN of the vehicle the camera was installed in.
The Asset ID or VIN must be entered starting with the first character. For example, entering the last 4 digits of the VIN will not work.
Tap the asset profile when it populates under the Asset ID or VIN search bar.

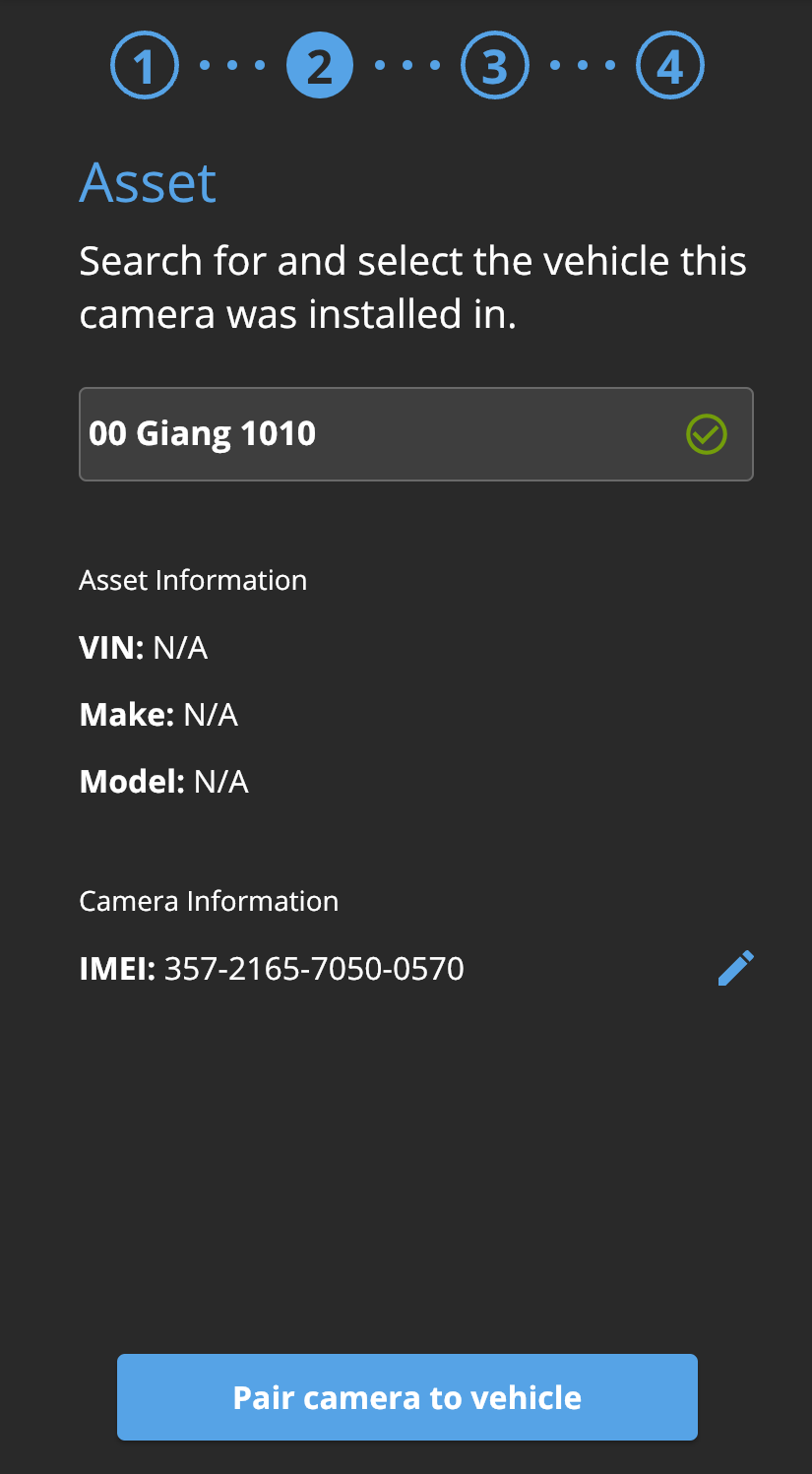

The selection will populate VIN, Make and Model information associated with the asset's profile and the full camera IMEI will appear in the Camera Information field.
Tap Pair camera to vehicle to start the pairing process.

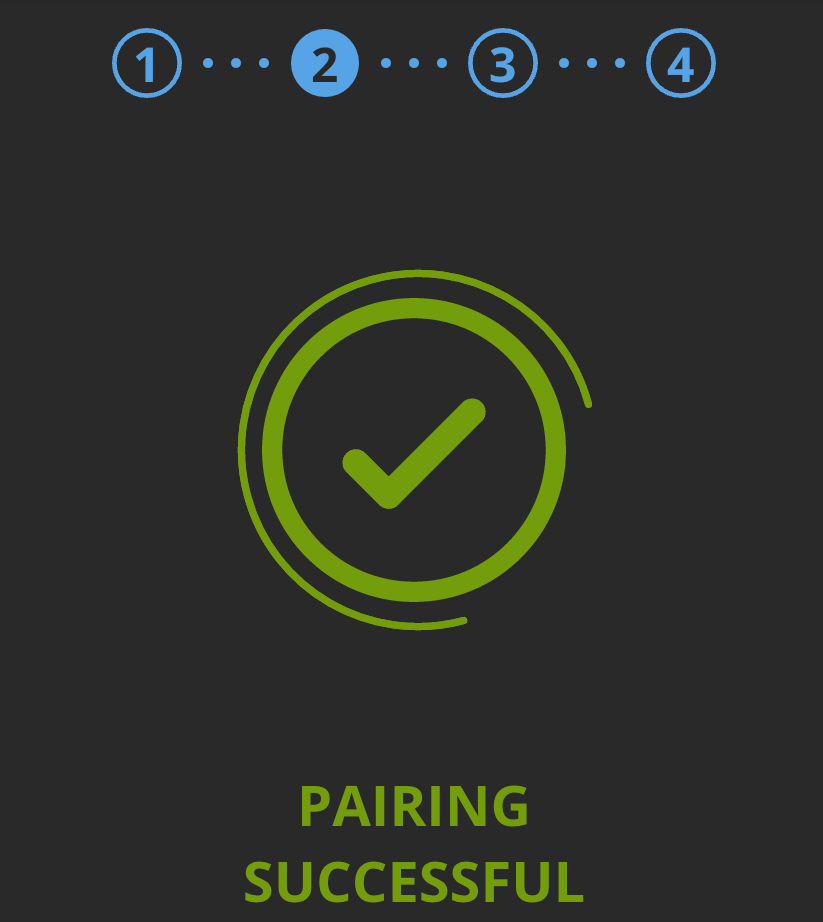

A green PAIRING SUCCESSFUL sign will appear when the camera has been assigned to the asset.
Tap Next.
Verify the Camera Alignment

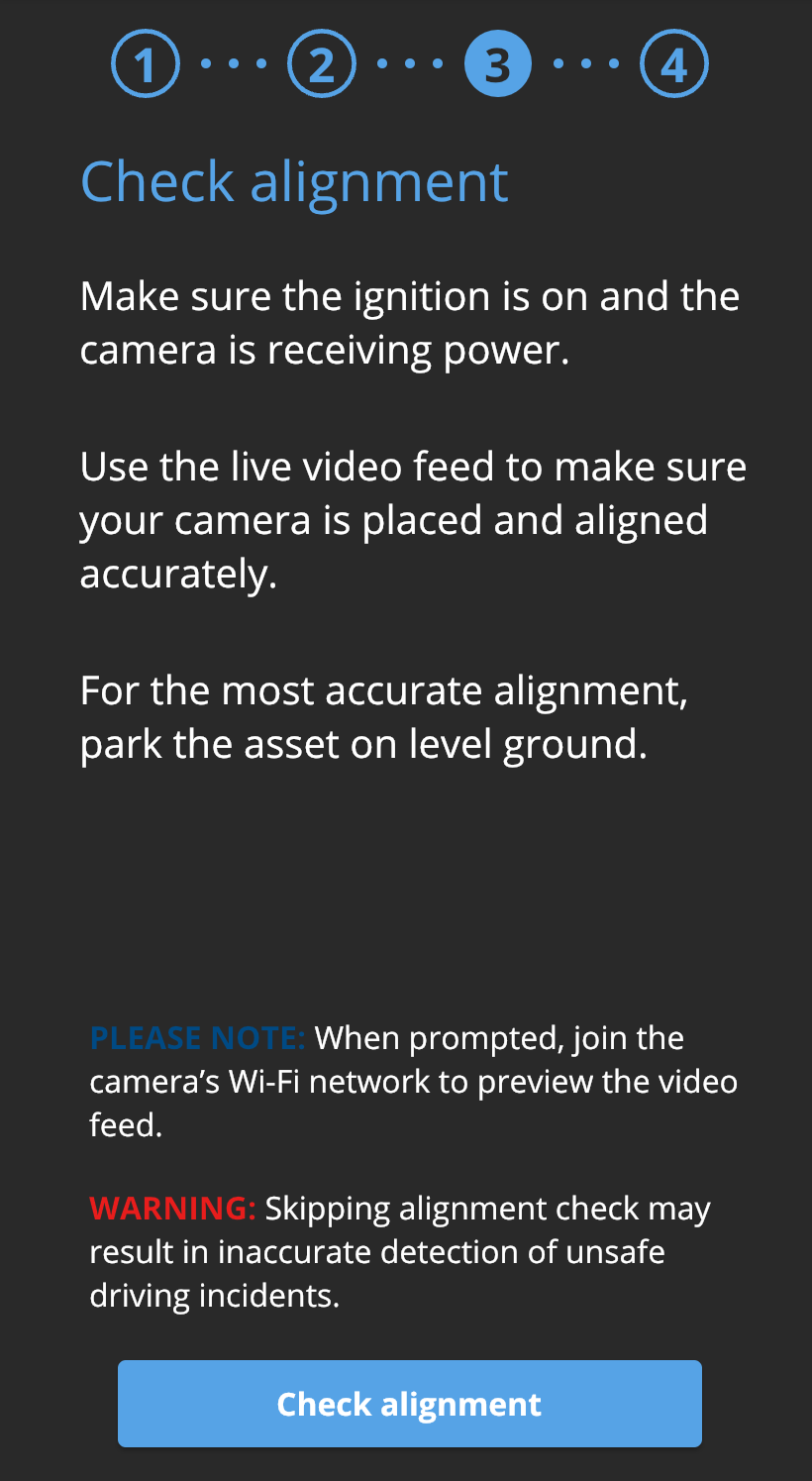

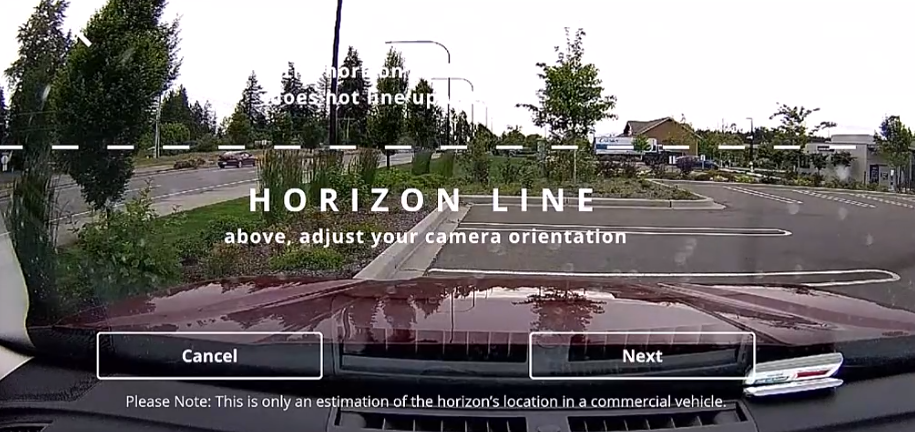

Tap Check alignment to open a live feed of the camera.
The image should be centered on the area in front, with a slight amount of the vehicle hood appearing at the bottom of the frame.
|
GOOD MOUNTING - Forward |
BAD MOUNTING - Forward |
|

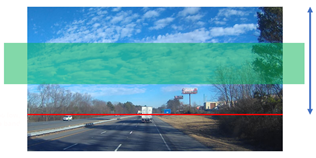

DashCam sees enough of the road and not too much sky. |
DashCam sees too much sky. Rotate DashCam down. |
|
|
Rotate DashCam up. |
|
GOOD MOUNTING - Rear |
BAD MOUNTING - Rear |
Tap Next to confirm the camera angle.
Review the Installation Summary

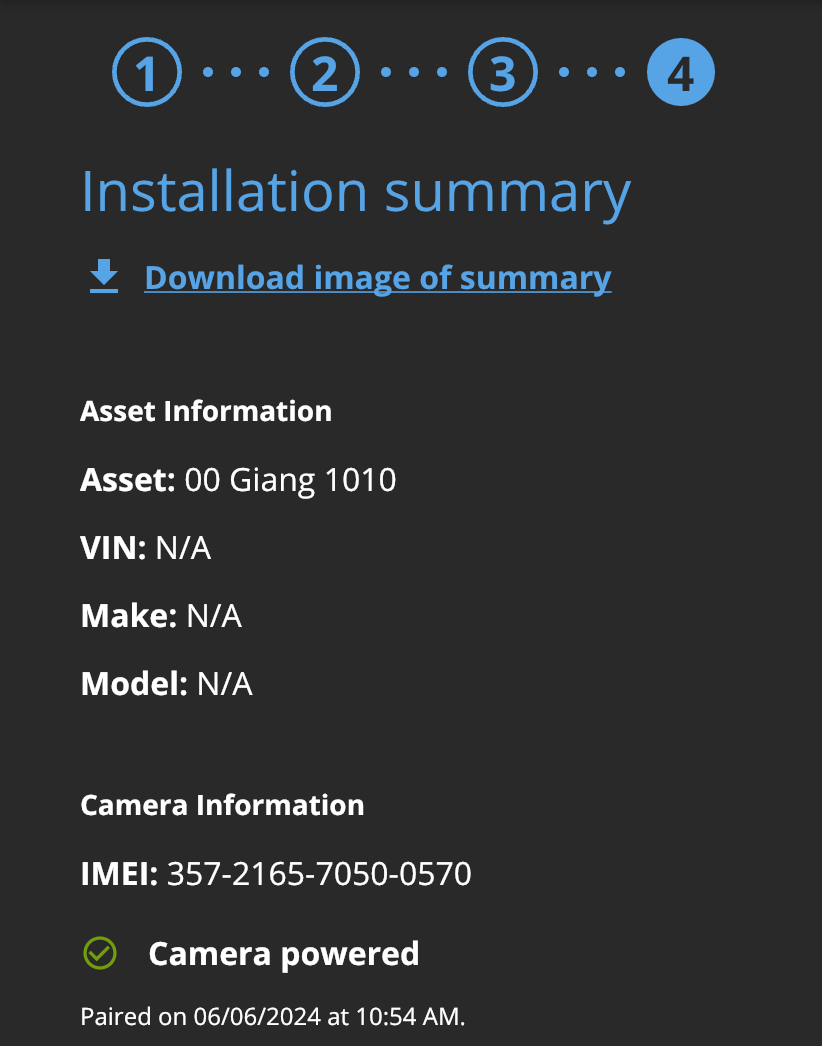

The camera has now been assigned to the asset profile. Before concluding the camera installation process review the information presented on the Installation summary page.
If the camera, asset, and alignment information is correct scroll to the bottom of the menu and tap Return to home.
The camera is now assigned to the asset.
Unpairing a Camera from an Asset
The Installation Summary screen also allows users to unpair cameras from assets.
To access an asset's Installation Summary, from the Home screen tap Asset + Camera List or tap the Assets icon to open the Asset list.
Asset tiles will populate in alphabetical order. Tap the Filters icon to sort the display or tap the Asset ID or VIN search bar to manually enter the asset information.
Newly created asset profiles may need to be synced to the Coach Installer app in order to appear. To trigger a sync, swipe down in the Asset + Camera List menu until the Refresh icon appears, release and then wait for the application to load the updated asset list.
Tap an asset profile to open the vehicle's Installation Summary.
If the user installed the camera the Installation Summary can also be found by opening My Install History or tapping the My History icon.
Scroll to the bottom of the Installation Summary and tap Unpair camera.

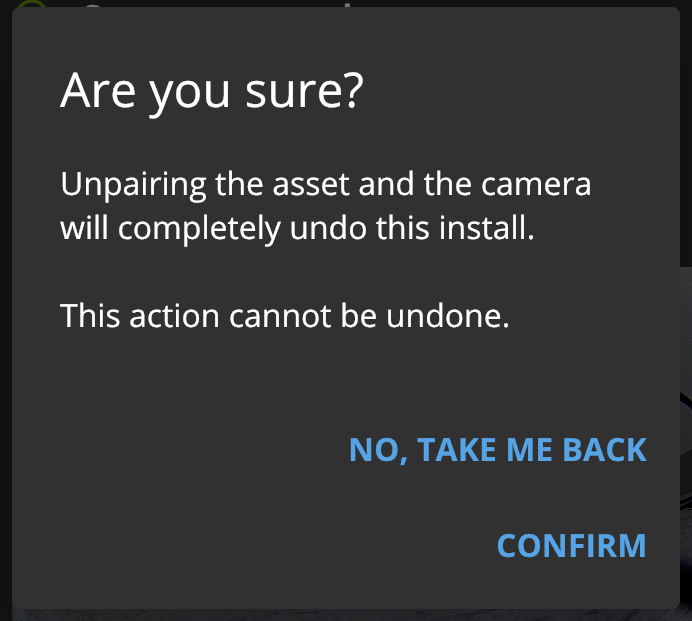

Tap Confirm to finish unpairing the camera.
